Panduit JBP1EEI | Surface Raceway, Pwr Rated Junct. Box, S/G 2-pc, ...
Regular price
$10.35
Unit price
Brand: Panduit
|
SKU:
10153438
Regular price
$10.35
Unit price
Description
Description

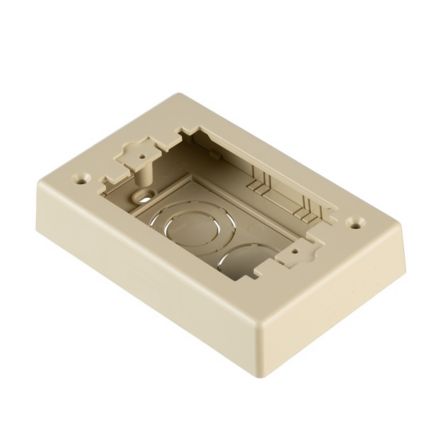

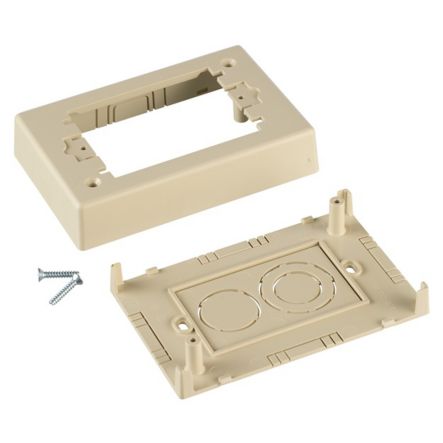

Panduit JBP1EEI | Surface Raceway, Pwr Rated Junct. Box, S/G 2-pc, Elec Ivory
The power rated single gang two-piece screw together extension outlet box. Box accepts Pan-Way Screw-On Faceplates or any NEMA standard single gang faceplate. For use with Pan-Way LD profile raceway. 4.99"L x 3.30"W x 1.00"H (126.7mm x 83.8mm x 25.4mm). Breakouts for 1/2", 3/4", or 1" diameter conduit, Electric Ivory.
Panduit Pan-Way Power Rated Surface Mount Outlet Box - Surface mount box - electric ivory - JBP1EEI.
Specifications
Specifications
Panduit - JBP1EEI - Product Categories
- Wire Routing, Management & Protection
- Surface Raceway Receptacles
Panduit - JBP1EEI - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JBP1EEI |
| Item Description | Surface Raceway, Pwr Rated Junct. Box, S/G 2-pc, Elec Ivory |
| Product Type | Power Rated |
| Color | Electric Ivory |
| Gang Opening Type | Single Gang |
| Material | PVC |
| Raceway Type | Two-Piece Outlet Box |
| Standards Met | RoHS Compliant |
| Overall Height (In.) | 1 |
| Overall Height (mm) | 25.4 |
| Sub Brand | Pan-Way |
| Overall Length (In.) | 4.99 |
| Overall Length (mm) | 126.7 |
| Overall Width (In.) | 3.3 |
| Overall Width (mm) | 83.8 |
| Application | Box Accepts Pan-Way Screw-On Faceplates Or Any Nema Standard Single Gang Faceplate. |
Panduit - JBP1EEI - Package Information
| UPC | 07498375476 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0347 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.3466 |
