Brand: Panduit
|
SKU:
JBP1EIW

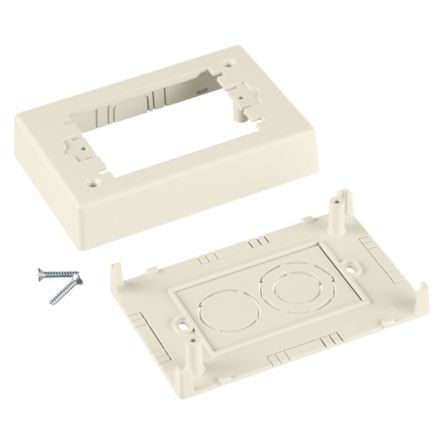

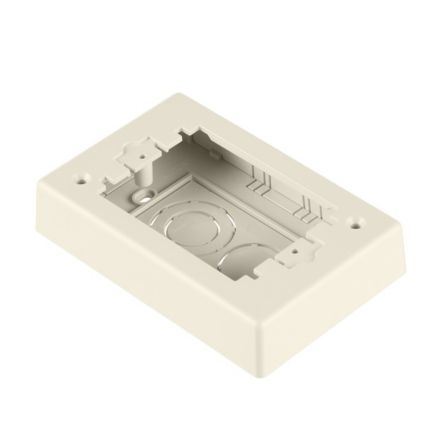

Panduit JBP1EIW | Single Gang Power Rated 2-piece Extension Outlet Box, Off White
Regular price
$10.35
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit JBP1EIW | Single Gang Power Rated 2-piece Extension Outlet ...
Regular price
$10.35
Unit price
Description
Description
Panduit JBP1EIW | Surface Raceway, Pwr Rated Junct. Box, S/G 2-pc, Off-White
The power rated single gang two-piece screw together outlet box. Box accepts Pan-Way Screw-On Faceplates or any NEMA standard single gang faceplate. For use with Pan-Way LD profile raceway. 5.19"L x 3.45"W x 1.75"H (131.9mm x 87.7mm x 44.4mm). Breakouts for 1/2", 3/4", or 1" diameter conduit. Off-White.
Panduit - JBP1EIW - Features
- Single gang two-piece screw together extension outlet box. Box accepts Pan-Way Screw-On Faceplates or any NEMA standard single gang faceplate. For use with Pan-Way LD profile raceway. 4.99";L x 3.30";W x 1.00";H (126.7mm x 83.8mm x 25.4mm). Breakouts fo r 1/2";, 3/4";, or 1"; diameter conduit.
- JBX3510 assembles without the use of screws for faster installation
- JBX3510, JB1, and JB1D are supplied with adhesive backing to speed installation
- JB1 and JB1D are a one-piece design requiring no assembly
Specifications
Specifications
Panduit - JBP1EIW - Product Categories
- Wire Routing, Management & Protection
- Surface Raceway Receptacles
Panduit - JBP1EIW - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JBP1EIW |
| Item Description | Surface Raceway, Pwr Rated Junct. Box, S/G 2-pc, Off-White |
| Product Type | Power Rated |
| Color | Off White |
| Gang Opening Type | Single Gang |
| Material | PVC |
| Raceway Type | Two-Piece Outlet Box |
| Standards Met | RoHS Compliant |
| Overall Height (In.) | 1 |
| Overall Height (mm) | 25.4 |
| Sub Brand | Pan-Way |
| Overall Length (In.) | 4.99 |
| Overall Length (mm) | 126.7 |
| Overall Width (In.) | 3.3 |
| Overall Width (mm) | 83.8 |
| Application | Box Accepts Pan-Way Screw-On Faceplates Or Any Nema Standard Single Gang Faceplate. |
Panduit - JBP1EIW - Package Information
| UPC | 07498375477 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0347 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.3466 |
