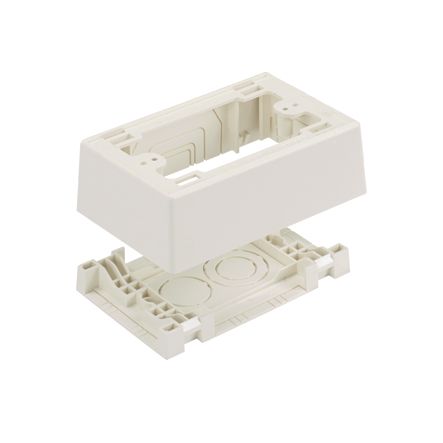

Panduit JBP1FSEI | Power Rated Single Gang Fast Snap Junction Box, Electric Ivory
Regular price
$14.50
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit JBP1FSEI | Power Rated Single Gang Fast Snap Junction Box, ...
Regular price
$14.50
Unit price
Description
Description
Panduit JBP1FSEI | Surface Raceway, Pwr Rated Junct. Box, S/G 2-pc, Snap, Elec Ivory
The single gang power rated two-piece snap together outlet box accepts Pan-Way Snap-On Faceplates. For use with Pan-Way T-45 or LD, LDP, LDPH, LDS profile raceways. 5.00"L x 3.26"W x 1.62"H (127.1mm x 82.7mm x 41.1mm). Breakouts for 1/2", 3/4", or 1" diameter conduit, Electric Ivory.
Panduit - JBP1FSEI - Features
- JB1FS, JB1FSD, and JBP2FS assemble without the use of screws for faster installation
- JB1FS and JB1FSD are supplied with adhesive backing to speed installation
Specifications
Specifications
Panduit - JBP1FSEI - Product Categories
- Wire Routing, Management & Protection
- Surface Raceway Receptacles
Panduit - JBP1FSEI - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JBP1FSEI |
| Item Description | Surface Raceway, Pwr Rated Junct. Box, S/G 2-pc, Snap, Elec Ivory |
| Product Type | Power Rated |
| Color | Electric Ivory |
| Gang Opening Type | Single Gang |
| Material | PVC |
| Raceway Type | Two-Piece Outlet Box |
| Standards Met | RoHS Compliant |
| Overall Height (In.) | 1.62 |
| Overall Height (mm) | 41.1 |
| Sub Brand | Pan-Way |
| Overall Length (In.) | 5 |
| Overall Length (mm) | 127.1 |
| Overall Width (In.) | 3.26 |
| Overall Width (mm) | 82.7 |
| Application | Box Accepts Pan-Way Screw-On Faceplates Or Any Nema Standard Single Gang Faceplate. |
Panduit - JBP1FSEI - Package Information
| UPC | 07498319805 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0265 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.2654 |
