Panduit JBP1IG | Pan-Way Junction Box
Regular price
$11.32
Unit price
Brand: Panduit
|
SKU:
392812
Regular price
$11.32
Unit price
Description
Description

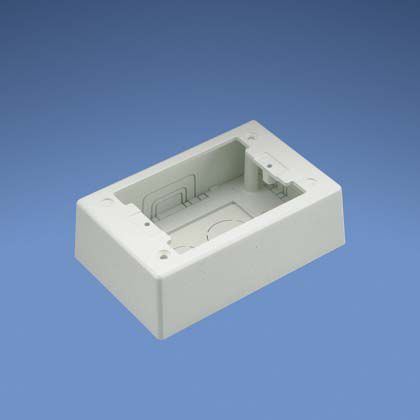

Panduit JBP1IG | Pan-Way Junction Box
Extend your power safely with our single gang, two-piece power rated junction box, ensures a secure connection, easy to install and works with standard faceplates.
Panduit Pan-Way Outlet Box, 1-Gang Power Rated, 5.19 in Length, 3.45 in Width, 1-3/4 in Height, For Use With: Pan-Way LD Series Surface Raceway, PVC, International Gray
Panduit - JBP1IG - Features
- 2-piece screw together outlet box
- Box accepts Pan-Way screw-on faceplates or any NEMA standard 1-gang faceplates
- Breakouts for 1/2 in, 3/4 in or 1 in Dia conduit
Specifications
Specifications
Panduit - JBP1IG - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JBP1IG |
| Product Type | Junction Box |
| Gang Opening Type | Single Gang |
| Material | PVC |
| Raceway Type | Two-Piece Outlet Box |
| Standards Met | RoHS Compliant |
| Sub Brand | Pan-Way |
| Overall Length (In.) | 5.19 |
| Overall Length (mm) | 131.9 |
| Overall Width (In.) | 3.45 |
| Overall Width (mm) | 87.7 |
| Overall Height (In.) | 1.75 |
| Overall Height (mm) | 44.4 |
| Application | Box Accepts Pan-Way Screw-On Faceplates Or Any Nema Standard Single Gang Faceplate. |
| UPC | 07498364070 |
Panduit - JBP1IG - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.8530 |
