Panduit JBP2DWH | Double Gang Power Rated 2-piece Deep Outlet Box, ...
Regular price
$26.36
Unit price
Description
Description

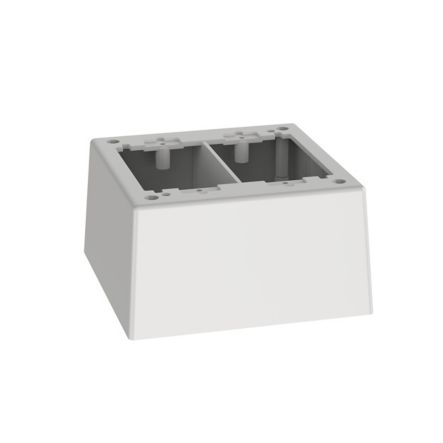

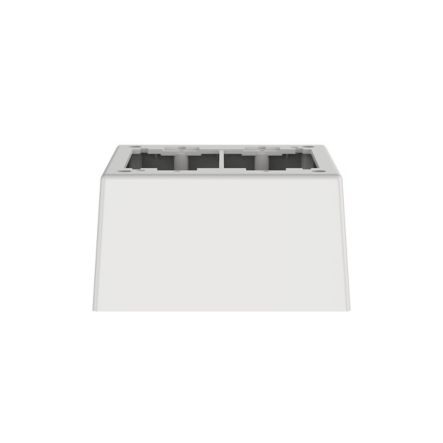

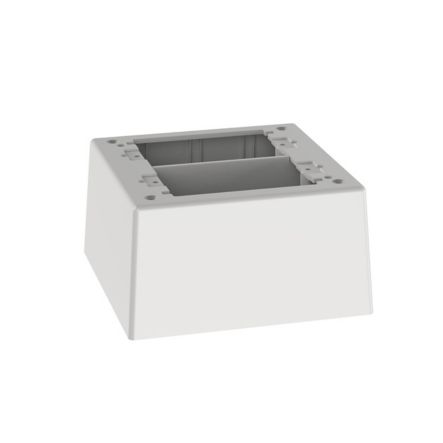

Panduit JBP2DWH | Surface Raceway, Pwr Rated Junct. Box, 2-gang, 2-pc, Deep, White
The power rated junction box is designed to be used with any Panduit LD profile Surface Raceway. It is compatible with standard double gang NEMA screw-on faceplates. It is a double gang box and measures 5.19 inches L x 5.19 inches W x 2.75 inches H (131.9mm x 131.9mm x 69.8mm). It is made of PVC material and is White.
Panduit - JBP2DWH - Features
- JBX3510 assembles without the use of screws for faster installation
- JBX3510, JB1, and JB1D are supplied with adhesive backing to speed installation
- JB1 and JB1D are a one-piece design requiring no assembly
Specifications
Specifications
Panduit - JBP2DWH - Product Categories
- Wire Routing, Management & Protection
- Surface Raceway Receptacles
Panduit - JBP2DWH - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JBP2DWH |
| Item Description | Surface Raceway, Pwr Rated Junct. Box, 2-gang, 2-pc, Deep, White |
| Product Type | Power Rated |
| Color | White |
| Gang Opening Type | Double Gang |
| Material | PVC |
| Raceway Type | Two-Piece Outlet Box |
| Standards Met | RoHS Compliant |
| Overall Height (In.) | 2.75 |
| Overall Height (mm) | 69.8 |
| Sub Brand | Pan-Way |
| Overall Length (In.) | 5.19 |
| Overall Length (mm) | 131.9 |
| Overall Width (In.) | 5.19 |
| Overall Width (mm) | 131.9 |
| Application | Box Accepts Pan-Way Screw-On Faceplates Or Any Nema Standard Single Gang Faceplate. |
| Part Features | Double gang two-piece screw together deep outlet box. (L=5.19in. W=5.19in. H=2.75in.) Box accepts Pan-Way screw-on faceplates or any NEMA standard double gang faceplate. |
Panduit - JBP2DWH - Package Information
| UPC | 07498370294 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.1168 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 1.1685 |
