Brand: Panduit
|
SKU:
243820

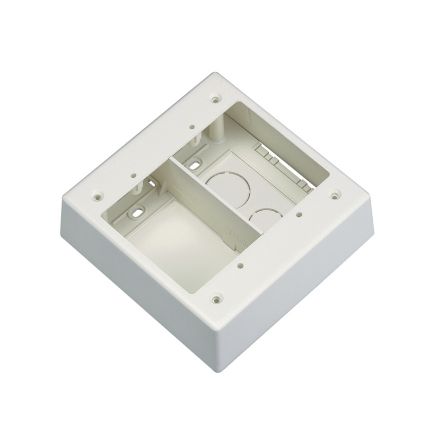

Panduit JBP2SEI | Double Gang Power Rated 2-piece Divided Outlet Box, Electric Ivory
Regular price
$21.09
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit JBP2SEI | Double Gang Power Rated 2-piece Divided Outlet Bo...
Regular price
$21.09
Unit price
Description
Description
Panduit JBP2SEI | Surface Raceway, Pwr Rated Junct. Box, 2-gang, 2-pc, Elec Ivory
The double gang two-piece screw together divided outlet box accepts Pan-Way Screw-On Faceplates or any NEMA standard double gang faceplate. For use with Pan-Way T-45 or LD profile raceway. 5.05"L x 5.05"W x 1.62"H (128.2mm x 128.2mm x 41.1mm). Breakouts for 1/2" or 3/4" diameter conduit. Electric Ivory
Panduit - JBP2SEI - Features
- JBX3510 assembles without the use of screws for faster installation
- JBX3510, JB1, and JB1D are supplied with adhesive backing to speed installation
- JB1 and JB1D are a one-piece design requiring no assembly
Specifications
Specifications
Panduit - JBP2SEI - Product Categories
- Wire Routing, Management & Protection
- Surface Raceway Receptacles
Panduit - JBP2SEI - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JBP2SEI |
| Item Description | Surface Raceway, Pwr Rated Junct. Box, 2-gang, 2-pc, Elec Ivory |
| Product Type | Power Rated |
| Color | International Gray |
| Gang Opening Type | Double Gang |
| Material | PVC |
| Raceway Type | Two-Piece Divided Outlet Box |
| Standards Met | RoHS Compliant |
| Overall Height (In.) | 1.62 |
| Overall Height (mm) | 41.1 |
| Sub Brand | Pan-Way |
| Overall Length (In.) | 5.05 |
| Overall Length (mm) | 128.2 |
| Overall Width (In.) | 5.05 |
| Overall Width (mm) | 128.2 |
| Application | Box Accepts Pan-Way Screw-On Faceplates Or Any Nema Standard Single Gang Faceplate. |
Panduit - JBP2SEI - Package Information
| UPC | 07498371516 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0717 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.7174 |
