Panduit JBP3DEI | Surface Raceway, Junct. Box, Deep, 3-gang, Non-Metal, Elec Ivory
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit JBP3DEI | Surface Raceway, Junct. Box, Deep, 3-gang, Non-Me...
Description
Description

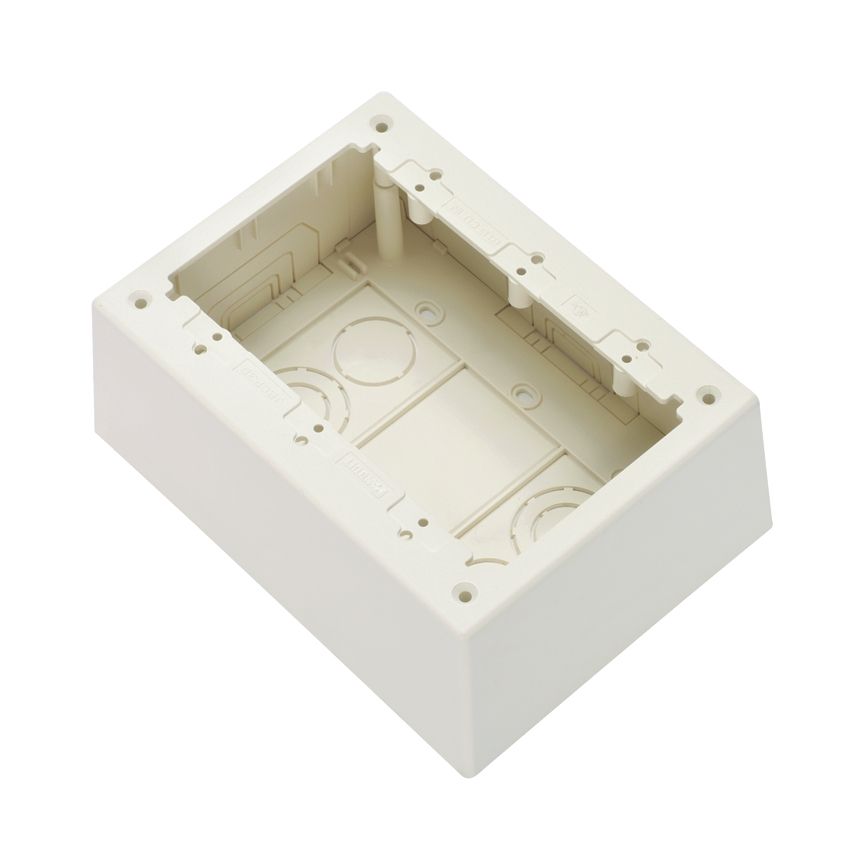

Power up your space with our deep junction box. Designed for compatibility with various raceway systems, it fits standard NEMA faceplates and offers versatile conduit options.
Three gang, two-piece screw together deep outlet box. Box accepts Pan-Way Screw-On Faceplates or any NEMA standard three gang faceplates. For use with Pan-Way LD, LDPH or T-45 surface raceway systems. 7.00in L x 5.19in W x 2.75in H (177.9mm x 131.9mm x 69.8mm). Breakouts for 1/2in, 3/4in and 1in diameter conduit, Electric Ivory.
Panduit Pan-Way Deep Outlet Box, 3-Gang 2-Piece Power Rated, 7 in Length, 5.19 in Width, 2-3/4 in Height, For Use With: Pan-Way LD, LDPH/T-45 Series Surface Raceway, PVC, Electric Ivory
Panduit - JBP3DEI - Features
- 3-gang 2-piece screw together deep outlet box
- Box accepts Pan-Way screw-on faceplates or any NEMA standard 3-gang faceplate
- Breakouts for 1/2 in, 3/4 in or 1 in Dia conduit
Specifications
Specifications
Panduit - JBP3DEI - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JBP3DEI |
| Color | Ivory |
| Gang | 3 |
| Loaded | No |
| Mounting | Surface Mount |
| UNSPSC Code | 43223300 |
| Product Type | Junction Box |
| Color | Electric Ivory |
| Gang Opening Type | Triple Gang |
| Material | PVC |
| Raceway Type | Two-Piece Outlet Box |
| Standards Met | RoHS Compliant |
| Sub Brand | Pan-Way |
| Overall Length (In.) | 7 |
| Overall Length (mm) | 177.9 |
| Overall Width (In.) | 5.19 |
| Overall Width (mm) | 131.9 |
| Overall Height (In.) | 2.75 |
| Overall Height (mm) | 69.8 |
| Application | Box Accepts Pan-Way Screw-On Faceplates Or Any Nema Standard Single Gang Faceplate. |
| UPC | 07498339767 |
Panduit - JBP3DEI - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8538.90.8180 |
