Brand: Panduit
|
SKU:
149891
Panduit JBX3510IW-A | Single Gang Low Voltage Outlet Box With Adhesive for Screw-on Faceplates, Off White
Regular price
$9.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit JBX3510IW-A | Single Gang Low Voltage Outlet Box With Adhes...
Regular price
$9.45
Unit price
Description
Description

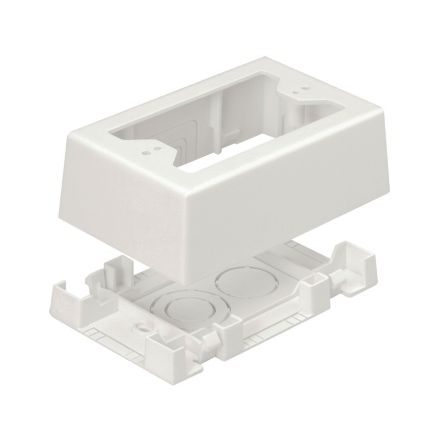

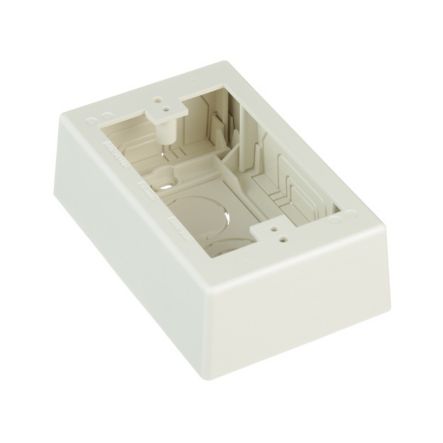

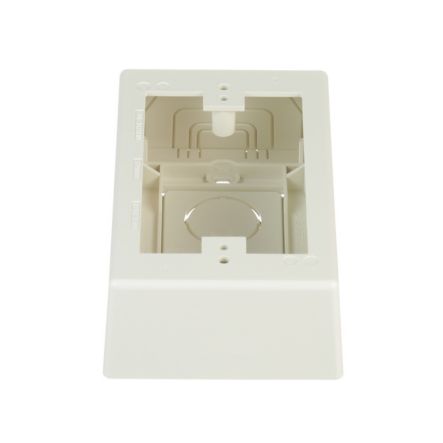

Panduit JBX3510IW-A | Surface Raceway, Low Voltage Junction Box, Off-White
The low voltage junction box for Surface Raceway is a one gang snap together outlet box designed for low voltage applications. It is made to be used with the T45 or LD profile raceway. It accepts Pan-Way Screw-On Faceplates or any NEMA standard single gang faceplate. It measures 5 inches L x 3.26 inches W x 1.62 inches H (127.1mm x 82.7mm x 41.1mm). It is made of PVC material and is Off-White.
Panduit - JBX3510IW-A - Features
- JBX3510 assembles without the use of screws for faster installation
- JBX3510, JB1, and JB1D are supplied with adhesive backing to speed installation
- JB1 and JB1D are a one-piece design requiring no assembly
Specifications
Specifications
Panduit - JBX3510IW-A - Product Categories
- Wire Routing, Management & Protection
- Surface Raceway Receptacles
Panduit - JBX3510IW-A - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JBX3510IW-A |
| Item Description | Surface Raceway, Low Voltage Junction Box, Off-White |
| Product Type | Low Voltage |
| Gang Opening Type | Single Gang |
| Material | PVC |
| Raceway Type | Two-Piece Snap Outlet Box |
| Standards Met | RoHS Compliant |
| Overall Height (In.) | 1.62 |
| Overall Height (mm) | 41.1 |
| Sub Brand | Pan-Way |
| Overall Length (In.) | 5 |
| Overall Length (mm) | 127 |
| Overall Width (In.) | 3.26 |
| Overall Width (mm) | 82.7 |
| Application | Box Accepts Pan-Way Screw-On Faceplates Or Any Nema Standard Single Gang Faceplate. |
| Part Features | Single gang two-piece snap together outlet box with adhesive backing. (L=5.00in. W=3.26in. H=1.62in.) Box accepts Pan-Way screw-on faceplates or any NEMA standard 70mm single gang faceplate. |
Panduit - JBX3510IW-A - Package Information
| UPC | 07498335394 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0351 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.3514 |
