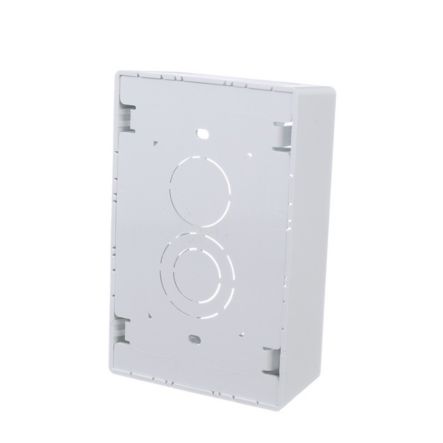

Panduit JBX3510WH-A | Surface Raceway, Low Voltage Junction Box, White
Regular price
$8.29
Unit price
Brand: Panduit
|
SKU:
9955742
Regular price
$8.29
Unit price
Description
Description
Panduit JBX3510WH-A | Surface Raceway, Low Voltage Junction Box, White
The low voltage junction box for Surface Raceway is a one gang snap together outlet box designed for low voltage applications. It is made to be used with the T45 or LD profile raceway. It accepts Pan-Way Screw-On Faceplates or any NEMA standard single gang faceplate. It measures 5 inches L x 3.26 inches W x 1.62 inches H (127.1mm x 82.7mm x 41.1mm). It is made of PVC material and is White.
Panduit JBX3510WH-A - OUTLET FRAME - SINGLE GANG LOW VOLTAGE
Specifications
Specifications
Panduit - JBX3510WH-A - Product Categories
- Wire Routing, Management & Protection
- Surface Raceway Receptacles
Panduit - JBX3510WH-A - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JBX3510WH-A |
| Item Description | Surface Raceway, Low Voltage Junction Box, White |
| Product Type | Low Voltage |
| Color | White |
| Gang Opening Type | Single Gang |
| Material | PVC |
| Raceway Type | Two-Piece Snap Outlet Box |
| Standards Met | RoHS Compliant |
| Overall Height (In.) | 1.62 |
| Overall Height (mm) | 41.1 |
| Sub Brand | Pan-Way |
| Overall Length (In.) | 5 |
| Overall Length (mm) | 127 |
| Overall Width (In.) | 3.26 |
| Overall Width (mm) | 82.7 |
| Application | Box Accepts Pan-Way Screw-On Faceplates Or Any Nema Standard Single Gang Faceplate. |
| Part Features | Single gang two-piece snap together outlet box with adhesive backing. (L=5.00in. W=3.26in. H=1.62in.) Box accepts Pan-Way screw-on faceplates or any NEMA standard 70mm single gang faceplate. |
Panduit - JBX3510WH-A - Package Information
| UPC | 07498335395 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0352 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.3518 |
