Panduit JMCMB25-1-X Single-level Ceiling Mount Bracket, Pack of 10
Regular price
$7.02
Unit price
Brand: Panduit
|
SKU:
265682
Regular price
$7.02
Unit price
Description
Description

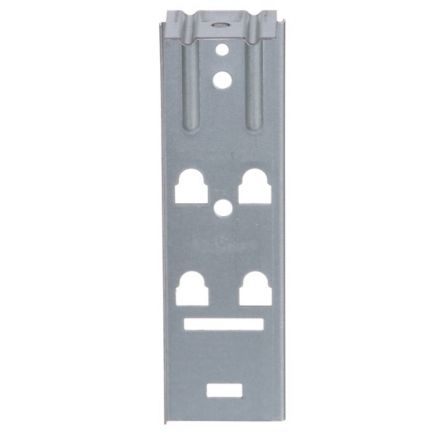

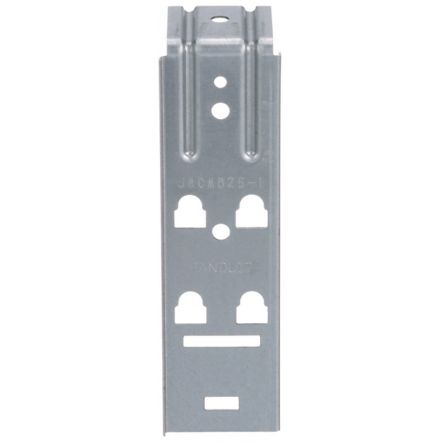

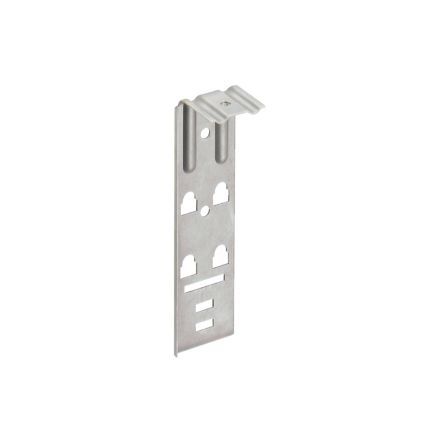

Panduit JMCMB25-1-X | StrongHold JMCMB25-1-X J-Mod Cable Support
Single-level ceiling mount bracket with one 1/4 (M6) mounting hole.
Panduit - JMCMB25-1-X - Features
- Modular design allows flexibility to assemble system in multiple configurations
- Unique chaining bracket design creates a strong metal backbone and allows expansion of the system without disturbance of an existing installation
- Brackets allow for attachment to ceilings, beams, threaded rods, and drop wires to meet requirements of a variety of applications
- Manufactured from materials that meet UL 2043 and are suitable for use in air handling spaces
- Complete horizontal and vertical 1"; bend radius control
- Cables do not come in contact with metal
Specifications
Specifications
Panduit - JMCMB25-1-X - Product Categories
- Wire Routing, Management & Protection
- Cable & Conduit Hangers
Panduit - JMCMB25-1-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JMCMB25-1-X |
| Item Description | StrongHold JMCMB25-1-X J-Mod Cable Support |
| Application | Support J-MOD J-Hooks |
| Product Type | J-Mod Cable Support |
| Color | Silver |
| Material | Galvanized Steel |
| Mount Method | Ceiling Mount |
| Overall Height (In.) | 6.96 |
| Overall Height (mm) | 176.8 |
| Overall Length (In.) | 1.96 |
| Overall Length (mm) | 49.7 |
| Overall Width (In.) | 1.96 |
| Overall Width (mm) | 49.7 |
| Sub Brand | StrongHold |
| Static Load Capacity (kg) | 81.6 |
| Static Load Capacity (lb) | 180 |
| Support Type | J-PRO J-Hook System |
| Part Features | J-MOD System is a chainable solution |
Panduit - JMCMB25-1-X - Package Information
| UPC | 07498338188 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.3536 |
| Standard. Ctn. Quantity | 50 |
| Standard. Ctn. Volume (cf) | 1.7679 |
Panduit - JMCMB25-1-X - Videos
| Video 1 | Click to View |
|---|
