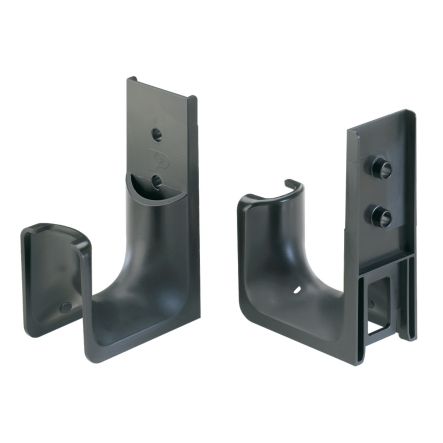

Panduit JMJH2W-X20 | J-MOD Wall Mount Cable Support
Regular price
$6.76
Unit price
Brand: Panduit
|
SKU:
265677
Regular price
$6.76
Unit price
Description
Description
Panduit JMJH2W-X20 | StrongHold JMJH2W-X20 J-Mod Cable Support
J Hook for wall mount applications only. Two 1/4 (M6) mounting holes for user supplied screws.
Panduit - JMJH2W-X20 - Features
- Modular design allows flexibility to assemble system in multiple configurations
- Unique chaining bracket design creates a strong metal backbone and allows expansion of the system without disturbance of an existing installation
- Brackets allow for attachment to ceilings, beams, threaded rods, and drop wires to meet requirements of a variety of applications
- Manufactured from materials that meet UL 2043 and are suitable for use in air handling spaces
- Complete horizontal and vertical 1"; bend radius control
- Cables do not come in contact with metal
Specifications
Specifications
Panduit - JMJH2W-X20 - Product Categories
- StrongHold Contractor Products
- Communication/Low Voltage
Panduit - JMJH2W-X20 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JMJH2W-X20 |
| Item Description | StrongHold JMJH2W-X20 J-Mod Cable Support |
| Application | Route High Performance Communication Cabling in Air Handling Spaces |
| Product Type | J-Mod Cable Support |
| Category 5e Cable Capacity | 55 |
| Category 6 Cable Capacity | 46 |
| Category 6A Cable Capacity | 30 |
| Color | Natural |
| Material | Nylon 6.6 |
| Maximum Flange Thickness (In.) | 0.24 |
| Maximum Flange Thickness (mm) | 6.4 |
| Maximum J-Hook Bundle Capacity | 50.8 |
| Mount Method | Wall Mount |
| Overall Height (In.) | 4.75 |
| Overall Height (mm) | 120.6 |
| Overall Length (In.) | 3.41 |
| Overall Length (mm) | 86.6 |
| Overall Width (In.) | 3.41 |
| Overall Width (mm) | 86.6 |
| Standards Met | UL, cULus Listed, RoHS Compliant |
| Sub Brand | StrongHold |
| Static Load Capacity (kg) | 13.6 |
| Static Load Capacity (lb) | 30 |
| Support Type | J-MOD Modular J-Hook System |
Panduit - JMJH2W-X20 - Package Information
| UPC | 07498343289 |
|---|---|
| Standard Pkg. Qty. | 10 |
| Standard Package Volume (cf) | 0.6822 |
| Standard Ctn. Qty. | 50 |
| Standard Ctn. Volume (cf) | 3.4111 |
Panduit - JMJH2W-X20 - Videos
| Video 1 | Click to View |
|---|
