Brand: Panduit
|
SKU:
265688

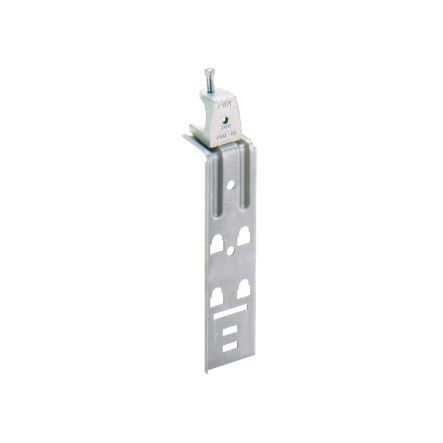

Panduit JMSBCB87-1-X | Single-Level Screw On Beam Clamp Bracket 7/8";, Pack of 10
Regular price
$11.62
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit JMSBCB87-1-X | Single-Level Screw On Beam Clamp Bracket 7/8...
Regular price
$11.62
Unit price
Description
Description
Panduit JMSBCB87-1-X | StrongHold JMSBCB87-1-X J-Mod Cable Support
Single-level screw-on beam clamp bracket for use with flanges up to 3/4 (19.1mm) thick.
Panduit - JMSBCB87-1-X - Features
- Modular design allows flexibility to assemble system in multiple configurations
- Unique chaining bracket design creates a strong metal backbone and allows expansion of the system without disturbance of an existing installation
- Brackets allow for attachment to ceilings, beams, threaded rods, and drop wires to meet requirements of a variety of applications
- Manufactured from materials that meet UL 2043 and are suitable for use in air handling spaces
- Complete horizontal and vertical 1"; bend radius control
- Cables do not come in contact with metal
Specifications
Specifications
Panduit - JMSBCB87-1-X - Product Categories
- StrongHold Contractor Products
- Communication/Low Voltage
Panduit - JMSBCB87-1-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JMSBCB87-1-X |
| Item Description | StrongHold JMSBCB87-1-X J-Mod Cable Support |
| Application | Support J-MOD J-Hooks |
| Product Type | J-Mod Cable Support |
| Color | Silver |
| For Use With | Flanges |
| Includes | Single-Level Screw-on Beam Clamp Bracket |
| Material | Galvanized Steel |
| Maximum Flange Thickness (In.) | 0.75 |
| Maximum Flange Thickness (mm) | 19 |
| Mount Method | Clamp Bracket |
| Overall Height (In.) | 8.43 |
| Overall Height (mm) | 214.1 |
| Overall Length (In.) | 1.96 |
| Overall Length (mm) | 49.7 |
| Overall Width (In.) | 1.96 |
| Overall Width (mm) | 49.7 |
| Sub Brand | StrongHold |
| Static Load Capacity (kg) | 81.6 |
| Static Load Capacity (lb) | 180 |
| Support Type | J-MOD Modular J-Hook System |
| Part Features | J-MOD System is a chainable solution |
Panduit - JMSBCB87-1-X - Package Information
| UPC | 07498339533 |
|---|---|
| Standard Pkg. Qty. | 10 |
| Standard Package Volume (cf) | 0.2337 |
| Standard Ctn. Qty. | 50 |
| Standard Ctn. Volume (cf) | 1.1685 |
Panduit - JMSBCB87-1-X - Videos
| Video 1 | Click to View |
|---|
