Brand: Panduit
|
SKU:
265687

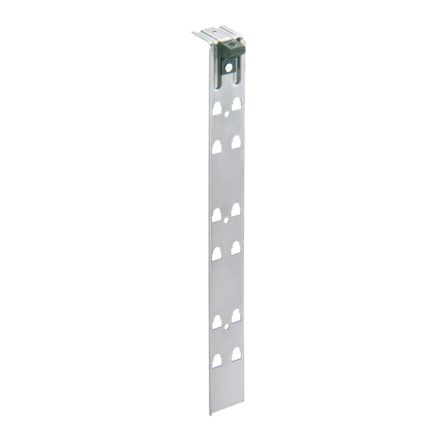

Panduit JMTRB38-3-X | Three-Level Threaded Rod Bracket, Pack of 10
Regular price
$11.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit JMTRB38-3-X | Three-Level Threaded Rod Bracket, Pack of 10
Regular price
$11.74
Unit price
Description
Description
Panduit JMTRB38-3-X | StrongHold JMTRB38-3-X J-Mod Cable Support
Three-level threaded rod bracket. Accepts 1/4" - 3/8" (6.4mm - 9.5mm) threaded rod. Maximum capacity of six J Hooks.
Panduit - JMTRB38-3-X - Features
- Modular design allows flexibility to assemble system in multiple configurations
- Unique chaining bracket design creates a strong metal backbone and allows expansion of the system without disturbance of an existing installation
- Brackets allow for attachment to ceilings, beams, threaded rods, and drop wires to meet requirements of a variety of applications
- Manufactured from materials that meet UL 2043 and are suitable for use in air handling spaces
- Complete horizontal and vertical 1"; bend radius control
- Cables do not come in contact with metal
Specifications
Specifications
Panduit - JMTRB38-3-X - Product Categories
- StrongHold Contractor Products
- Communication/Low Voltage
Panduit - JMTRB38-3-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JMTRB38-3-X |
| Item Description | StrongHold JMTRB38-3-X J-Mod Cable Support |
| Application | Support J-MOD J-Hooks |
| Product Type | J-Mod Cable Support |
| Category 5e Cable Capacity | 55 |
| Category 6 Cable Capacity | 46 |
| Category 6A Cable Capacity | 30 |
| Color | Natural |
| For Use With | Threaded Rod |
| Material | Galvanized Steel |
| Mount Method | Drop Wire |
| Overall Height (In.) | 16.95 |
| Overall Height (mm) | 430.5 |
| Overall Length (In.) | 1.96 |
| Overall Length (mm) | 49.7 |
| Overall Width (In.) | 1.96 |
| Overall Width (mm) | 49.7 |
| Standards Met | UL, cULus Listed, RoHS Compliant |
| Sub Brand | StrongHold |
| Static Load Capacity (kg) | 81.6 |
| Static Load Capacity (lb) | 180 |
| Support Type | J-MOD Modular J-Hook System |
Panduit - JMTRB38-3-X - Package Information
| UPC | 07498338200 |
|---|---|
| Standard Pkg. Qty. | 10 |
| Standard Package Volume (cf) | 0.0775 |
| Standard Ctn. Qty. | 50 |
| Standard Ctn. Volume (cf) | 0.3873 |
Panduit - JMTRB38-3-X - Videos
| Video 1 | Click to View |
|---|
