Brand: Panduit
|
SKU:
DRC-020271

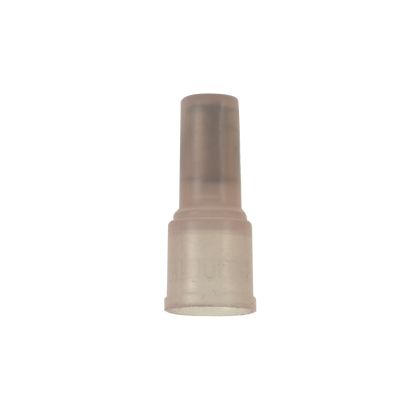

Panduit JN224-318-C | Pan-Term JN224-318-C Wire Joint, Red, Nylon, 24-16 AWG, PK100
Regular price
$54.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit JN224-318-C | Pan-Term JN224-318-C Wire Joint, Red, Nylon, ...
Regular price
$54.72
Unit price
Description
Description
Panduit JN224-318-C | Pan-Term JN224-318-C Wire Joint, Red, Nylon, 24-16 AWG, PK100
Panduit JN224-318-C Nylon Insulated Wire Joint
Specifications
Specifications
Panduit - JN224-318-C - Product Categories
- Wire Termination
- Wire Joints
Panduit - JN224-318-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JN224-318-C |
| Item Description | Pan-Term JN224-318-C Wire Joint, Red, Nylon, 24-16 AWG, PK100 |
| Note | #24 size combinations not UL listed. |
| Product Type | Wire Joint |
| Base Material | Brass |
| Wire Strip Length (In.) | 0.5 |
| Color Code | Red |
| Finish/Coating | Tin-Plated |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #24 |
| Minimum Copper Conductor Size (AWG STR) | #24 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Voltage (V) | 600 |
| Overall Length (In.) | 0.79 |
| Overall Length (mm) | 20.1 |
| Inside Diameter (In.) | 0.1 |
| Inside Diameter (mm) | 2.54 |
| Standards Met | UL486C, CSA C22.2 No 65 |
| Wire Strip Length (mm) | 11.1 |
| Packaging Type | Bag |
| For Use With | CT-1550, CT-1551, CT-2500/L (CT-2550CH) |
| Sub Brand | Pan-Term |
| Copper Conductor Size (AWG) | #24 - #14 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 0.25 |
Brand Name - JN224-318-C - Package Information
| UPC | 07498383998 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.2535 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
