Brand: Panduit
|
SKU:
236279

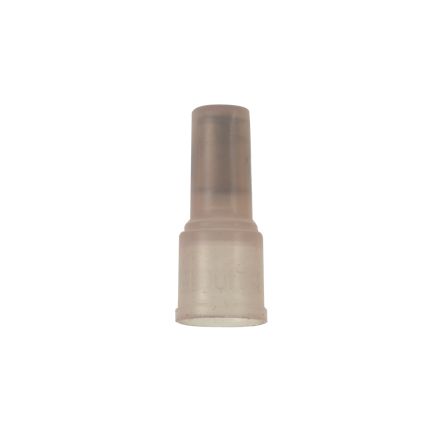

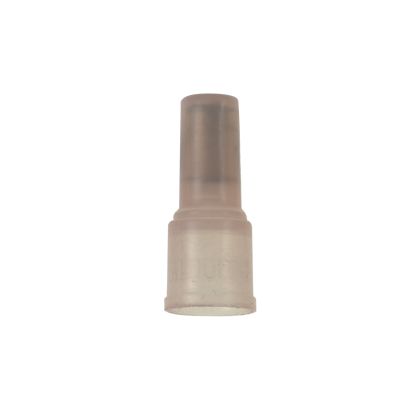

Panduit JN224-318-C | Pan-Term Wire Joint, Red, Nylon, 24-16 AWG, PK100
Regular price
$1.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit JN224-318-C | Pan-Term Wire Joint, Red, Nylon, 24-16 AWG, P...
Regular price
$1.70
Unit price
Description
Description
Panduit JN224-318-C | Pan-Term Wire Joint, Red, Nylon, 24-16 AWG, PK100
Protect and connect your wires securely with our insulated wire joint, ideal for splicing and extending electrical circuits.
Panduit Pan-Term Wire Joint, Insulated, Series: JN Series, 600 VAC, 24 to 16 AWG Wire, 0.79 in Length, 7/16 in Wire Strip Length, 221 deg F, For Use With: CT-1550, CT-1551 and CT-2500 Crimping Tool, 0.27 in Maximum Insulation, Brass/Nylon, Red, Tin Plated, 0.1 in ID x 0.21 in OD
Panduit - JN224-318-C - Features
- Large barrel, designed to accommodate from 1 to 7 wires with just one crimp
- Accommodates multiple wire sizes in varying combinations
- Barrel of terminal internally beveled to provide quick and easy wire insertion
Specifications
Specifications
Panduit - JN224-318-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JN224-318-C |
| Note | #24 size combinations not UL listed. |
| Product Type | Wire Joint |
| Base Material | Brass |
| Wire Strip Length (In.) | 0.5 |
| Wire Strip Length (mm) | 11.1 |
| Color Code | Red |
| Finish/Coating | Tin-Plated |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 14 |
| Maximum Copper Conductor Size (AWG STR) | 14 |
| Minimum Copper Conductor Size (AWG SOL) | 24 |
| Minimum Copper Conductor Size (AWG STR) | 24 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Voltage (V) | 600 |
| Copper Conductor Size (AWG) | 24-16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 0.25 |
| Overall Length (In.) | 0.79 |
| Overall Length (mm) | 20.1 |
| Inside Diameter (In.) | 0.1 |
| UPC | 07498383998 |
Panduit - JN224-318-C - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
