Panduit JN224-318-M | Pan-Term Wire Joint, Red, Nylon, 14-24 AWG, P...
Description
Description
Protect and connect your wires securely with our insulated wire joint, ideal for splicing and extending electrical circuits.

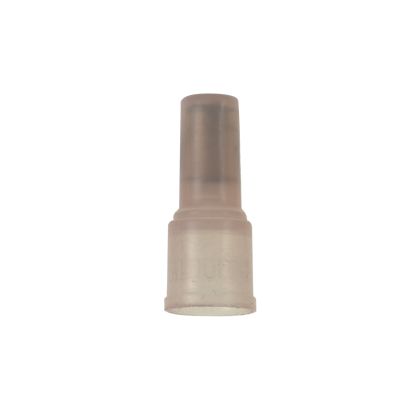

The JN224-318-M is a nylon insulated wire joint designed to accommodate multiple wire sizes in varying combinations with just one crimp. Barrel of terminal internally beveled to provide quick and easy wire insertion.
Panduit Pan-Term Wire Joint, Insulated, Series: JN Series, 600 VAC, 24 to 16 AWG Wire, 0.79 in Length, 7/16 in Wire Strip Length, 221 deg F, For Use With: CT-1550, CT-1551 and CT-2500 Crimping Tool, 0.27 in Maximum Insulation, Brass/Nylon, Red, Tin Plated, 0.1 in ID x 0.21 in OD
Panduit - JN224-318-M - Features
- Designed to accommodate from one to seven wires with just one crimp
- Accommodates multiple wire sizes in varying combinations
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Nylon insulated
Specifications
Specifications
Panduit - JN224-318-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JN224-318-M |
| UNSPSC Code | 39121400 |
| Note | #24 size combinations not UL listed. |
| Product Type | Wire Joint |
| Base Material | Brass |
| Wire Strip Length (In.) | 7/16 |
| Wire Strip Length (mm) | 11.1 |
| Color Code | Red |
| Finish/Coating | Tin-Plated |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 14 |
| Maximum Copper Conductor Size (AWG STR) | 14 |
| Minimum Copper Conductor Size (AWG SOL) | 24 |
| Minimum Copper Conductor Size (AWG STR) | 24 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Copper Conductor Size (AWG) | 24-14 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 0.25 |
| Overall Length (In.) | 0.79 |
| Overall Length (mm) | 20.1 |
| UPC | 07498383999 |
