Brand: Panduit
|
SKU:
330246

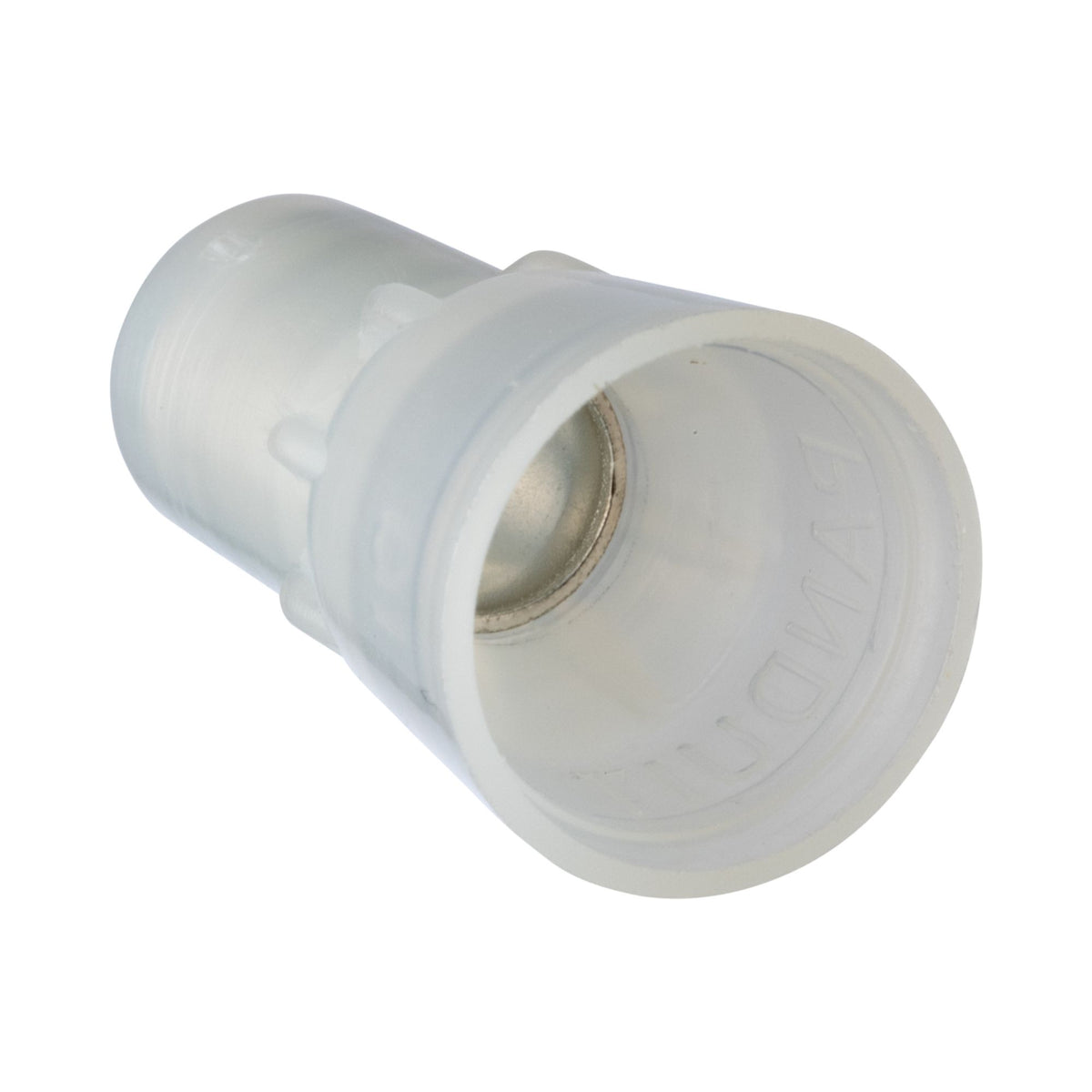

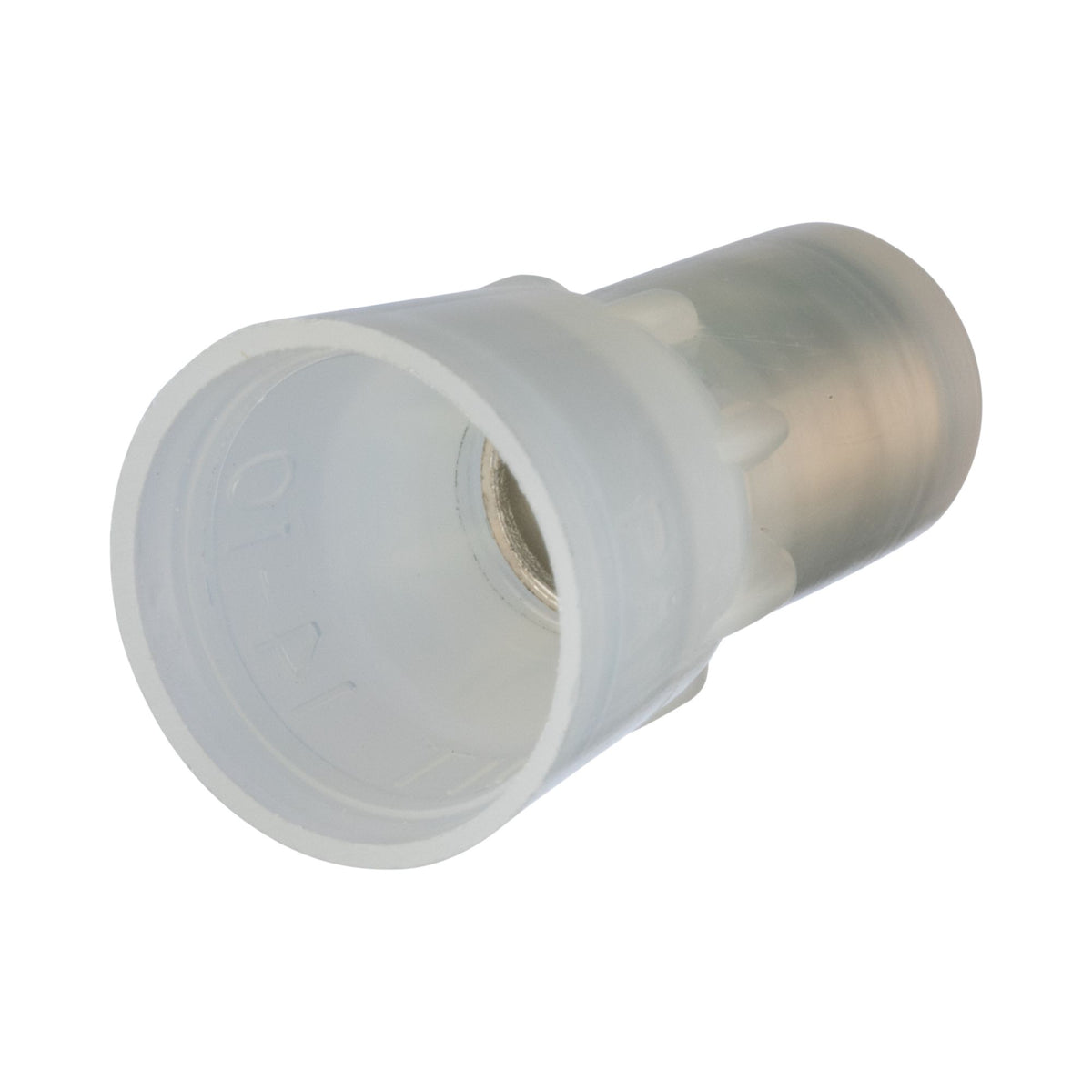

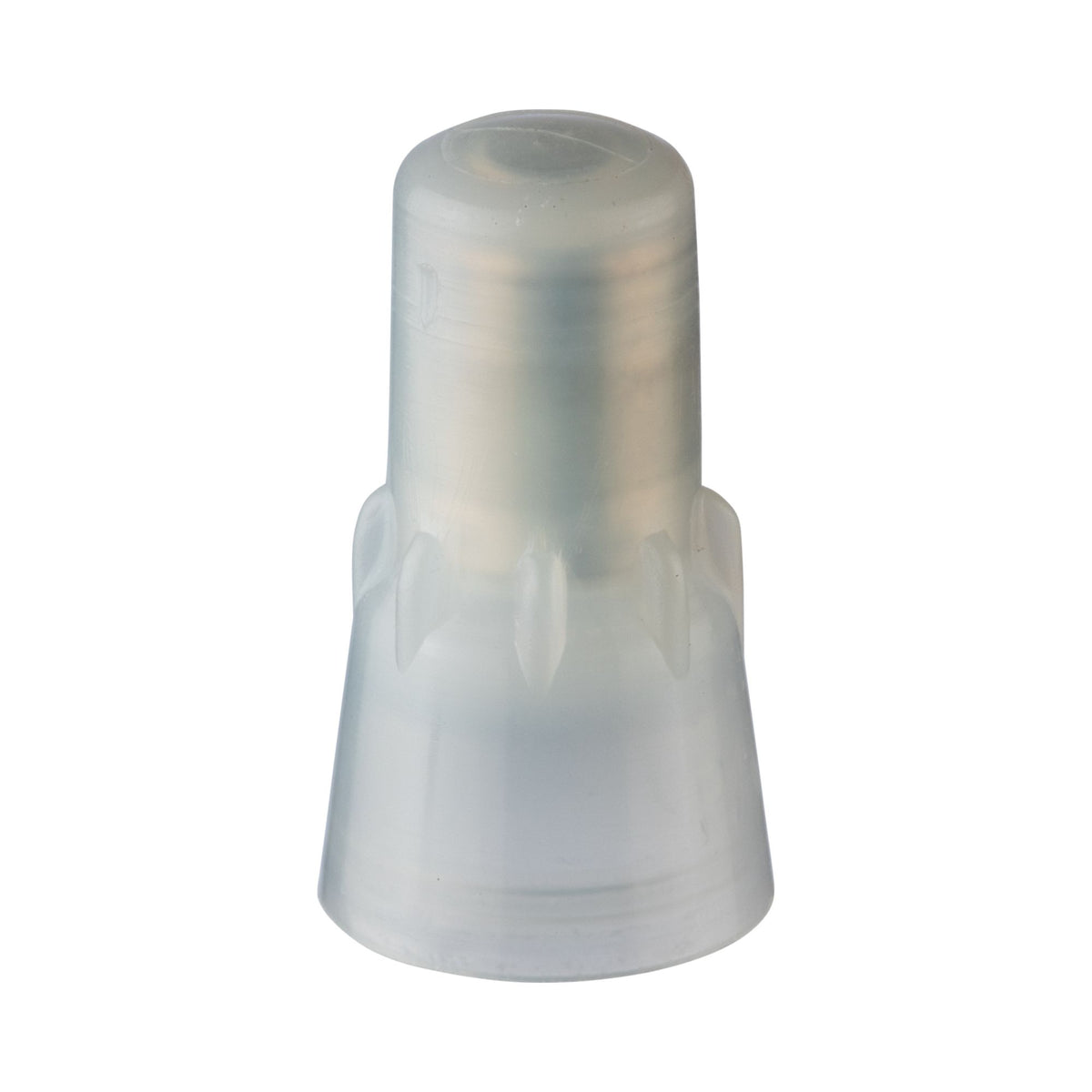

Panduit JN314-412-C | Pan-Term JN314-412-C Wire Joint, Nylon, 8-16 AWG, PK100
Regular price
$105.99
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit JN314-412-C | Pan-Term JN314-412-C Wire Joint, Nylon, 8-16 ...
Regular price
$105.99
Unit price
Description
Description
Panduit JN314-412-C | Pan-Term JN314-412-C Wire Joint, Nylon, 8-16 AWG, PK100
Panduit JN314-412-C Nylon Insulated Wire Joint
Panduit JN314-412-C - Cable wire joint - clear - JN314-412-C.
Specifications
Specifications
Panduit - JN314-412-C - Product Categories
- Wire Termination
- Wire Joints
Panduit - JN314-412-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JN314-412-C |
| Item Description | Pan-Term JN314-412-C Wire Joint, Nylon, 8-16 AWG, PK100 |
| Product Type | Wire Joint |
| Base Material | Brass |
| Wire Strip Length (In.) | 5/8 |
| Color Code | Clear |
| Finish/Coating | Tin-Plated |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #8 |
| Maximum Copper Conductor Size (AWG STR) | #8 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Overall Length (In.) | 0.97 |
| Overall Length (mm) | 24.6 |
| Inside Diameter (In.) | 0.22 |
| Inside Diameter (mm) | 5.6 |
| Wire Strip Length (mm) | 15.9 |
| Packaging Type | Bag |
| For Use With | CT-100, CT-160, CT-260 |
| Sub Brand | Pan-Term |
| Copper Conductor Size (AWG) | #16 - #8 |
| Maximum Metric Conductor Size (mm²) | 10 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Part Features | Designed to accommodate from one to seven wires with just one crimp, Accommodates multiple wire sizes in varying combinations, Barrel of terminal internally beveled to provide quick and easy wire insertion |
Panduit - JN314-412-C - Package Information
| UPC | 07498384004 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.2535 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - JN314-412-C - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
