Brand: Panduit
|
SKU:
PAN-JN418-212-D
Panduit JN418-212-D | Pan-Term Jn418-212-D Wire Joint, Nylon, 12-18 Awg, Pk500
Regular price
$209.03
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit JN418-212-D | Pan-Term Jn418-212-D Wire Joint, Nylon, 12-18...
Regular price
$209.03
Unit price
Brand: Panduit
|
SKU:
PAN-JN418-212-D
Regular price
$209.03
Unit price
Shipping calculated at checkout.
Description
Description
Panduit JN418-212-D | Pan-Term Jn418-212-D Wire Joint, Nylon, 12-18 Awg, Pk500

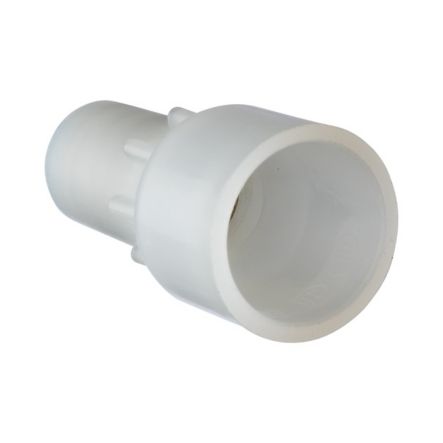

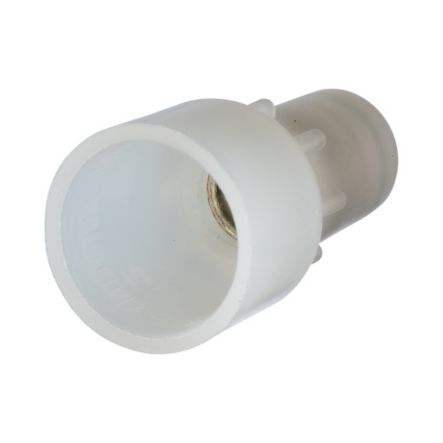

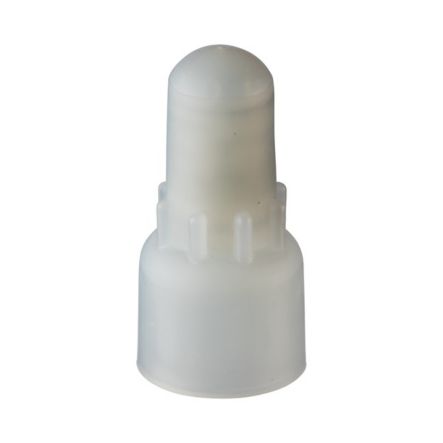

Panduit JN418-212-D Nylon Insulated Wire Joint
Panduit - JN418-212-D - Features
- Large barrel, designed to accommodate from one to seven wires with just one crimp
- Accommodates multiple wire sizes in varying combinations
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- UL and CSA rated up to 600 V per UL 486
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
Specifications
Specifications
Panduit - JN418-212-D - Product Categories
- Wire Termination
- Wire Joints
Panduit - JN418-212-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JN418-212-D |
| Item Description | Pan-Term Jn418-212-D Wire Joint, Nylon, 12-18 Awg, Pk500 |
| Product Type | Wire Joint |
| Base Material | Brass |
| Wire Strip Length (In.) | 1/2 |
| Color Code | Clear |
| Finish/Coating | Tin-Plated |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #12 |
| Maximum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Overall Length (In.) | 0.93 |
| Overall Length (mm) | 23.6 |
| Inside Diameter (In.) | 0.165 |
| Inside Diameter (mm) | 4.19 |
| Standards Met | UL486C, CSA C22.2 No 65 |
| Wire Strip Length (mm) | 12.7 |
| Packaging Type | Bag |
| For Use With | CT-100, CT-1550, CT-1551, CT-2500/L (CT-2550CH) |
| Sub Brand | Pan-Term |
| Copper Conductor Size (AWG) | #18 - #10 |
| Maximum Metric Conductor Size (mm²) | 4 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Part Features | Designed to accommodate from one to seven wires with just one crimp, Accommodates multiple wire sizes in varying combinations, Barrel of terminal internally beveled to provide quick and easy wire insertion |
Panduit - JN418-212-D - Package Information
| UPC | 07498339994 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.5972 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - JN418-212-D - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
