Brand: Panduit
|
SKU:
PAN-JN418-212-DN
Panduit JN418-212-DN | Pan-Term JN418-212-D Wire Joint, Nylon, 12-18 AWG, PK500
Regular price
$226.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit JN418-212-DN | Pan-Term JN418-212-D Wire Joint, Nylon, 12-1...
Regular price
$226.29
Unit price
Brand: Panduit
|
SKU:
PAN-JN418-212-DN
Regular price
$226.29
Unit price
Shipping calculated at checkout.
Description
Description
Panduit JN418-212-DN | Pan-Term JN418-212-D Wire Joint, Nylon, 12-18 AWG, PK500

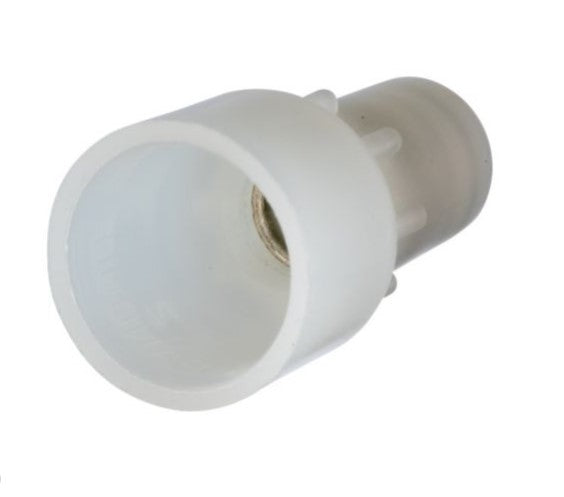

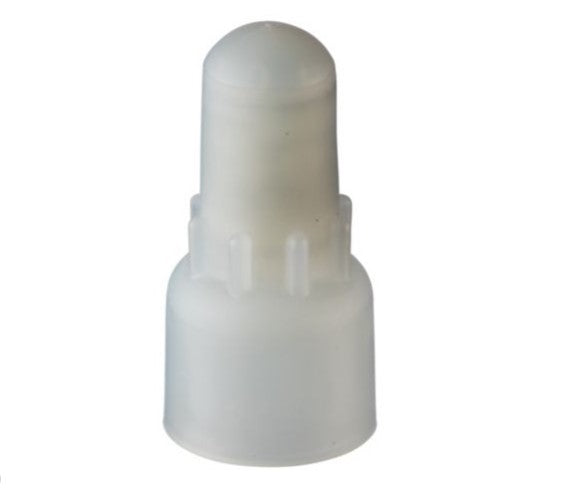

Panduit JN418-212-D Nylon Insulated Wire Joint
Specifications
Specifications
Panduit - JN418-212-DN - Specifications
| Product Type | Wire Joint |
|---|---|
| Base Material | Brass |
| Wire Strip Length (In.) | 1/2 |
| Wire Strip Length (mm) | 12.7 |
| Color Code | Clear |
| Finish/Coating | Tin-Plated |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #12 |
| Maximum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Copper Conductor Size (AWG) | #18 - #10 |
| Maximum Metric Conductor Size (mm²) | 4 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Overall Length (In.) | 0.93 |
| Overall Length (mm) | 23.6 |
| Inside Diameter (In.) | 0.165 |
| Inside Diameter (mm) | 4.19 |
| Packaging Type | Bag |
| For Use With | CT-100, CT-1550, CT-1551, CT-2500/L (CT-2550CH) |
| Sub Brand | Pan-Term® |
Panduit - JN418-212-DN - Package Information
| UPC | 61305687756 |
|---|---|
| Std. Pkg. Qty. | 500 |
| Std. Pkg. Volume (cf) | 0.5972 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
