Brand: Panduit
|
SKU:
427844

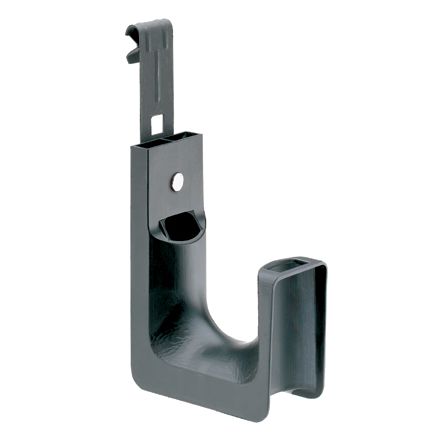

Panduit JP131CP-L20 | J Hook With c-purlin clip for use With vertical flanges up to 1/4"; (6.4mm) Thick
Regular price
$6.76
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit JP131CP-L20 | J Hook With c-purlin clip for use With vertic...
Regular price
$6.76
Unit price
Description
Description
Panduit JP131CP-L20 | StrongHold JP131CP-L20 J-Pro Cable Support
J-PRO Cable support system, with c-purlin clip for use with vertical flanges up to 1/4 (6.4mm) thick, 1.31 (33.3mm) max. bundle capacity, nylon 6.6 with metal attachments, black, 50 pc. package quantity.
Panduit - JP131CP-L20 - Features
- J Hook with c-purlin clip for use with vertical flanges up to 1/4"; (6.4mm) thick.
- Complete horizontal and vertical 1"; bend radius control helps prevent degradation of cable performance
- UL 2043 and CAN/ULC S102.2 listed and are suitable for use in air handling spaces
- Durable non-metallic J Hook materials provide the ability to manage and support a large number of cables
- Pre-riveted assemblies allow for attachment to ceilings, beams, threaded rods, drop wires and under floor supports to meet requirements of a variety of applications
- Wide cable support base prevents pinch points that could cause damage to cables
- Cable tie channel allows user to easily install 3/4"; Tak-Ty(TM) Cable Ties to retain cable bundle
Specifications
Specifications
Panduit - JP131CP-L20 - Product Categories
- StrongHold Contractor Products
- Communication/Low Voltage
Panduit - JP131CP-L20 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JP131CP-L20 |
| Item Description | StrongHold JP131CP-L20 J-Pro Cable Support |
| Application | Route High Performance Communication Cabling in Air Handling Spaces |
| Product Type | J-Pro Cable Support |
| Category 5e Cable Capacity | 29 |
| Category 6 Cable Capacity | 25 |
| Category 6A Cable Capacity | 15 |
| Color | Black |
| For Use With | Z-Purlin Clip |
| Includes | C-Purlin Clip |
| Material | Nylon 6.6/Metal |
| Maximum Flange Thickness (In.) | 0.25 |
| Maximum Flange Thickness (mm) | 6.4 |
| Maximum J-Hook Bundle Capacity | 33.34 |
| Mount Method | Clip mount |
| Overall Height (In.) | 6 |
| Overall Height (mm) | 151.8 |
| Overall Length (In.) | 2.9 |
| Overall Length (mm) | 73.3 |
| Overall Width (In.) | 2.9 |
| Overall Width (mm) | 73.3 |
| Standards Met | UL, cULus Listed, RoHS Compliant |
| Sub Brand | StrongHold |
| Static Load Capacity (kg) | 11.3 |
| Static Load Capacity (lb) | 25 |
| Support Type | J-PRO J-Hook System |
| Part Features | Bend Radius Control, Smooth Pulling Surface |
Panduit - JP131CP-L20 - Package Information
| UPC | 07498344050 |
|---|---|
| Standard Pkg. Qty. | 50 |
| Standard Package Volume (cf) | 1.2851 |
| Standard Ctn. Qty. | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - JP131CP-L20 - Videos
| Video 1 | Click to View |
|---|
