Panduit JP131WP2B-L20 | StrongHold JP131WP2B-L20 J-Pro Cable Support
Regular price
$4.06
Unit price
Brand: Panduit
|
SKU:
507669
Regular price
$4.06
Unit price
Description
Description

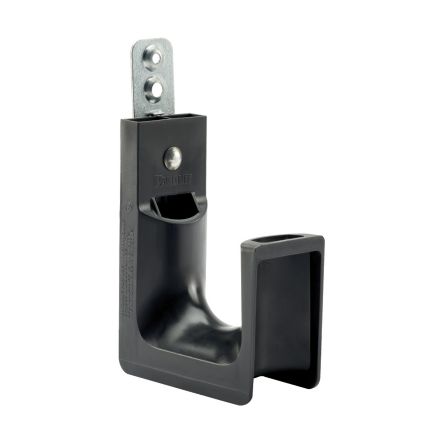

Panduit JP131WP2B-L20 | StrongHold JP131WP2B-L20 J-Pro Cable Support
J-PRO Cable support system, for powder actuated installation on walls, one 5/32 (M4) mounting hole for user supplied fasteners, 1.31 (33.3 mm) max. bundle capacity, nylon 6.6 with metal attachments, black, 50 pc. package quantity.
Panduit - JP131WP2B-L20 - Features
- Complete horizontal and vertical 1"; bend radius control helps prevent degradation of cable performance
- UL 2043 and CAN/ULC S102.2 listed and are suitable for use in air handling spaces
- Durable non-metallic J Hook materials provide the ability to manage and support a large number of cables
- Pre-riveted assemblies allow for attachment to ceilings, beams, threaded rods, drop wires and under floor supports to meet requirements of a variety of applications
- Wide cable support base prevents pinch points that could cause damage to cables
- Cable tie channel allows user to easily install 3/4"; Tak-Ty(TM) Cable Ties to retain cable bundle
Specifications
Specifications
Panduit - JP131WP2B-L20 - Product Categories
- StrongHold Contractor Products
- Communication/Low Voltage
Panduit - JP131WP2B-L20 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JP131WP2B-L20 |
| Item Description | StrongHold JP131WP2B-L20 J-Pro Cable Support |
| Application | Route High Performance Communication Cabling in Air Handling Spaces |
| Product Type | J-Pro Cable Support |
| Category 5e Cable Capacity | 29 |
| Category 6 Cable Capacity | 25 |
| Category 6A Cable Capacity | 15 |
| Color | Black |
| For Use With | Fasteners |
| Includes | Plate |
| Material | Nylon 6.6/Metal |
| Maximum J-Hook Bundle Capacity | 33.34 |
| Mount Method | Wall Mount for Powder Actuated Fasteners |
| Overall Height (In.) | 4.8 |
| Overall Height (mm) | 121.9 |
| Overall Length (In.) | 2.5 |
| Overall Length (mm) | 63.5 |
| Overall Width (In.) | 2.5 |
| Overall Width (mm) | 63.5 |
| Standards Met | UL, cULus Listed, RoHS Compliant |
| Sub Brand | StrongHold |
| Static Load Capacity (kg) | 11.3 |
| Static Load Capacity (lb) | 25 |
| Support Type | J-PRO J-Hook System |
| Part Features | Bend Radius Control, Smooth Pulling Surface |
Panduit - JP131WP2B-L20 - Package Information
| UPC | 07498396633 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.7128 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - JP131WP2B-L20 - Videos
| Video 1 | Click to View |
|---|
