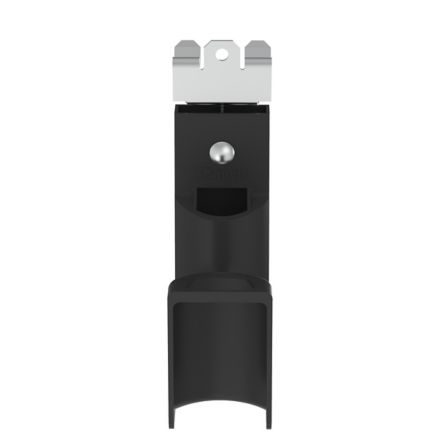

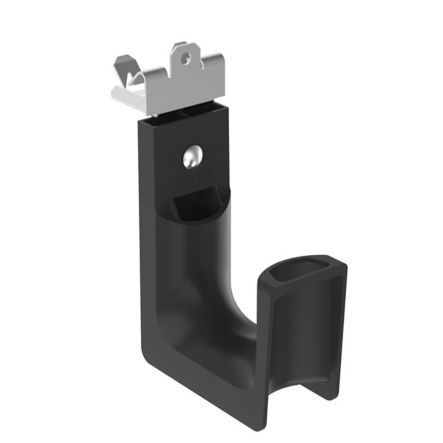

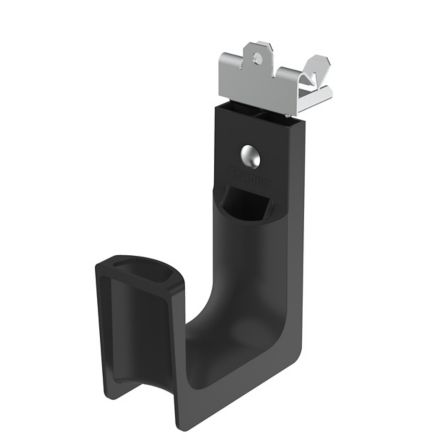

Panduit JP2SBC87RB-L20 | J Hook With Screw-on Beam Clamp Use With Flanges Up To 3/4"; (19.1mm) Thick Rotates 360 degrees, Black, Maximum Bundle Capacity 2.0";
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit JP2SBC87RB-L20 | J Hook With Screw-on Beam Clamp Use With F...
Description
Description
StrongHold JP2SBC87RB-L20 J-Pro J hook with Screw-On Beam Clamps have a patented design, featuring complete horizontal and vertical 1" bend radius control as well as 360 degree rotation. This feature prevents pinch points and degradation of cable performance. They are suitable for use in air handling spaces and are UL listed. For use with flanges up to 3/4" (19.1mm) thick and 2.0" (50.8mm) max bundle capacity. Made of Nylon 6.6, are black in color and come in packages of 50.
Panduit - JP2SBC87RB-L20 - Features
- J Hook with screw-on beam clamp for use with flanges up to 3/4"; (19.1mm) thick. Rotates 360 degrees.
- Complete horizontal and vertical 1"; bend radius control helps prevent degradation of cable performance
- UL 2043 and CAN/ULC S102.2 listed and are suitable for use in air handling spaces
- Durable non-metallic J Hook materials provide the ability to manage and support a large number of cables
- Pre-riveted assemblies allow for attachment to ceilings, beams, threaded rods, drop wires and under floor supports to meet requirements of a variety of applications
- Wide cable support base prevents pinch points that could cause damage to cables
- Cable tie channel allows user to easily install 3/4"; Tak-Ty(TM) Cable Ties to retain cable bundle
Specifications
Specifications
Panduit - JP2SBC87RB-L20 - Product Categories
- Wire Routing, Management & Protection
- Cable & Conduit Hangers
Panduit - JP2SBC87RB-L20 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JP2SBC87RB-L20 |
| Item Description | StrongHold JP2SBC87RB-L20 J-Hook, Rotating, 0.75", Blk, PA 6.6/Metal, Screw-On |
| Application | Route High Performance Communication Cabling in Air Handling Spaces |
| Product Type | J-Pro Cable Support |
| Category 5e Cable Capacity | 55 |
| Category 6 Cable Capacity | 46 |
| Category 6A Cable Capacity | 30 |
| Color | Black |
| For Use With | Flanges |
| Includes | Screw-On Beam Clamp |
| Material | Nylon 6.6/Metal |
| Maximum Flange Thickness (In.) | 0.75 |
| Maximum Flange Thickness (mm) | 19 |
| Maximum J-Hook Bundle Capacity | 50.08 |
| Mount Method | Screw-On Beam Clamp |
| Overall Height (In.) | 6.96 |
| Overall Height (mm) | 177 |
| Overall Length (In.) | 4.84 |
| Overall Length (mm) | 123 |
| Overall Width (In.) | 4.84 |
| Overall Width (mm) | 123 |
| Standards Met | UL, cULus Listed, RoHS Compliant |
| Sub Brand | StrongHold |
| Static Load Capacity (kg) | 13.6 |
| Static Load Capacity (lb) | 30 |
| Support Type | J-PRO J-Hook System |
| Part Features | Bend Radius Control, Smooth Pulling Surface |
Panduit - JP2SBC87RB-L20 - Package Information
| UPC | 07498396624 |
|---|---|
| Standard Pkg. Qty. | 50 |
| Standard Package Volume (cf) | 1.5833 |
| Standard Ctn. Qty. | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
