Brand: Panduit
|
SKU:
507676

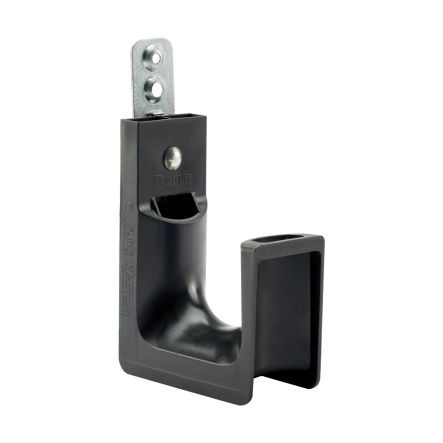

Panduit JP2WP2B-L20 | J Hook For Powder Actuated Installation On Walls, One 5/32"; (M4) Mounting Hole and One 1/4"; (M6) Mounting Hole For user supplied fasteners, Black, Maximum Bundle Capacity 2.0";
Regular price
$5.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit JP2WP2B-L20 | J Hook For Powder Actuated Installation On Wa...
Regular price
$5.39
Unit price
Description
Description
Panduit JP2WP2B-L20 | StrongHold JP2WP2B-L20 J-Hook Cable System, Black, PA 6.6/Metal, Wall Mount, 2"
J-PRO Cable support system, for powder actuated installation on walls, one 5/32 (M4) mounting hole for user supplied fasteners, 2.00 (50.8mm) max. bundle capacity, nylon 6.6 with metal attachments, black, 50 pc. package quantity.
Panduit - JP2WP2B-L20 - Features
- Complete horizontal and vertical 1"; bend radius control helps prevent degradation of cable performance
- UL 2043 and CAN/ULC S102.2 listed and are suitable for use in air handling spaces
- Durable non-metallic J Hook materials provide the ability to manage and support a large number of cables
- Pre-riveted assemblies allow for attachment to ceilings, beams, threaded rods, drop wires and under floor supports to meet requirements of a variety of applications
- Wide cable support base prevents pinch points that could cause damage to cables
- Cable tie channel allows user to easily install 3/4"; Tak-Ty(TM) Cable Ties to retain cable bundle
Specifications
Specifications
Panduit - JP2WP2B-L20 - Product Categories
- StrongHold Contractor Products
- Communication/Low Voltage
Panduit - JP2WP2B-L20 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JP2WP2B-L20 |
| Item Description | StrongHold JP2WP2B-L20 J-Hook Cable System, Black, PA 6.6/Metal, Wall Mount, 2" |
| Application | Route High Performance Communication Cabling in Air Handling Spaces |
| Product Type | J-Pro Cable Support |
| Category 5e Cable Capacity | 55 |
| Category 6 Cable Capacity | 46 |
| Category 6A Cable Capacity | 30 |
| Color | Black |
| For Use With | Fastners |
| Material | Nylon 6.6/Metal |
| Maximum J-Hook Bundle Capacity | 50.8 |
| Mount Method | Wall Mount for Powder Actuated Fasteners |
| Overall Height (In.) | 6.1 |
| Overall Height (mm) | 155.9 |
| Overall Length (In.) | 3.7 |
| Overall Length (mm) | 94 |
| Overall Width (In.) | 3.7 |
| Overall Width (mm) | 94 |
| Standards Met | UL, cULus Listed, RoHS Compliant |
| Sub Brand | StrongHold |
| Static Load Capacity (kg) | 13.6 |
| Static Load Capacity (lb) | 30 |
| Support Type | J-PRO J-Hook System |
| Part Features | Bend Radius Control, Smooth Pulling Surface |
Panduit - JP2WP2B-L20 - Package Information
| UPC | 07498396602 |
|---|---|
| Standard Pkg. Qty. | 50 |
| Standard Package Volume (cf) | 1.3196 |
| Standard Ctn. Qty. | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - JP2WP2B-L20 - Videos
| Video 1 | Click to View |
|---|
