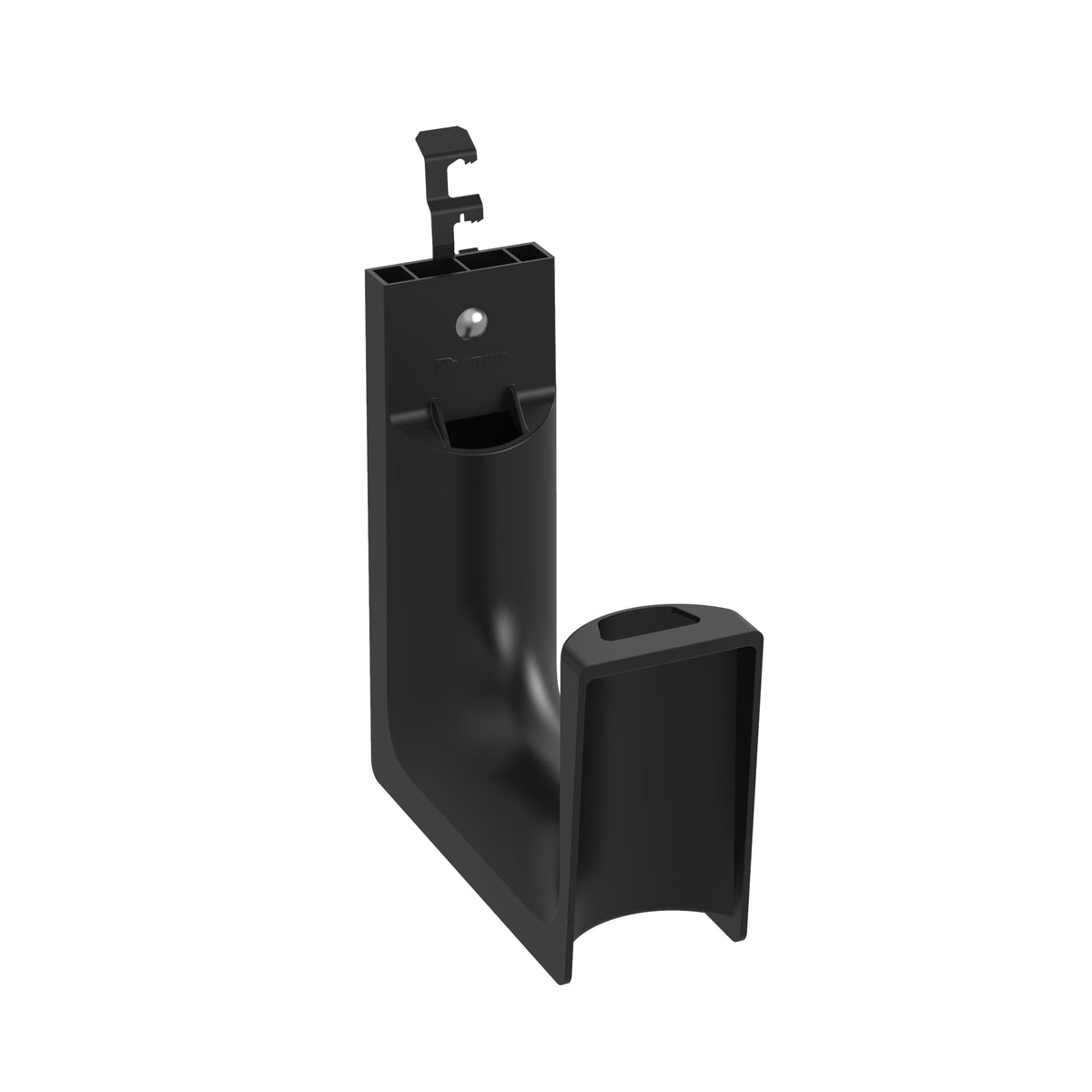

Panduit JP4DW-X20 | J-Pro Cable Support | UPC - 61305602291
Description
Description
The J-Pro Cable Support System is designed to provide a competitive alternative to metal J hooks for routing cables throughout the physical infrastructure. This system provides complete bend radius control and includes many easy to use mounting options to provide the lowest installed cost. The selection of multiple sizes, colors and pre-riveted J hook assemblies meet the requirements of a wide variety of applications and are suitable for use in air handling spaces.
Panduit J-Pro Cable Support System, J-Hook, Series: JP4, 100 lb Static/101.6 lb Bundle Load, Drop Wire Mount, 0.43 in THK Flange, Nylon 6.6, Black, 6.8 in L x 6.8 in W x 9.24 in H
Features + Benefits
- Complete horizontal and vertical 1 in bend radius control - helps prevent degradation of cable performance and prevents pinch points that could cause damage to cable
- Pre-riveted assemblies - allow for attachment to ceilings, beams, threaded rods, drop wires and underfloor supports to meet requirements of a variety of applications
- Cable tie channel - allows user to install 3/4 in Tak-Ty Cable Tie and provides a method to retain and manage cable bundles
- Non-metallic J hook - prevents cables from coming in contact with metal
Panduit JP4DW-X20 Key Specs
| Product Type | J-Pro Cable Support |
| Category 5e Cable Capacity | 200 |
| Category 6 Cable Capacity | 180 |
| Category 6A Cable Capacity | 115 |
| Color | Black |
| Material | Nylon 6.6 |
| Maximum Flange Thickness (In.) | 0.43 |
| Maximum Flange Thickness (mm) | 11.1 |
| Maximum J-Hook Bundle Capacity | 101.6 |
| Mount Method | Drop Wire |
| Overall Height (In.) | 9.24 |
| Overall Height (mm) | 234.7 |
| Overall Length (In.) | 6.8 |
| Overall Length (mm) | 172.7 |
| Overall Width (In.) | 6.8 |
| Overall Width (mm) | 172.7 |
| Standards Met | UL, cULus Listed, RoHS Compliant |
Panduit JP4DW-X20 Data Sheets
| Product Bulletins | Hook and Loop Cable Ties | Download and View |
| Catalog Cut Sheets | Hook and Loop Cable Ties | Download and View |
| Part Drawings | Tak-Ty Hook & Loop Tie, HLM Series (All), SS-27052 (R5) | Download and View |
