Panduit JP4HBC75RB-X20 | StrongHold J-Pro Cable Support
Regular price
$13.98
Unit price
Brand: Panduit
|
SKU:
507706
Regular price
$13.98
Unit price
Description
Description

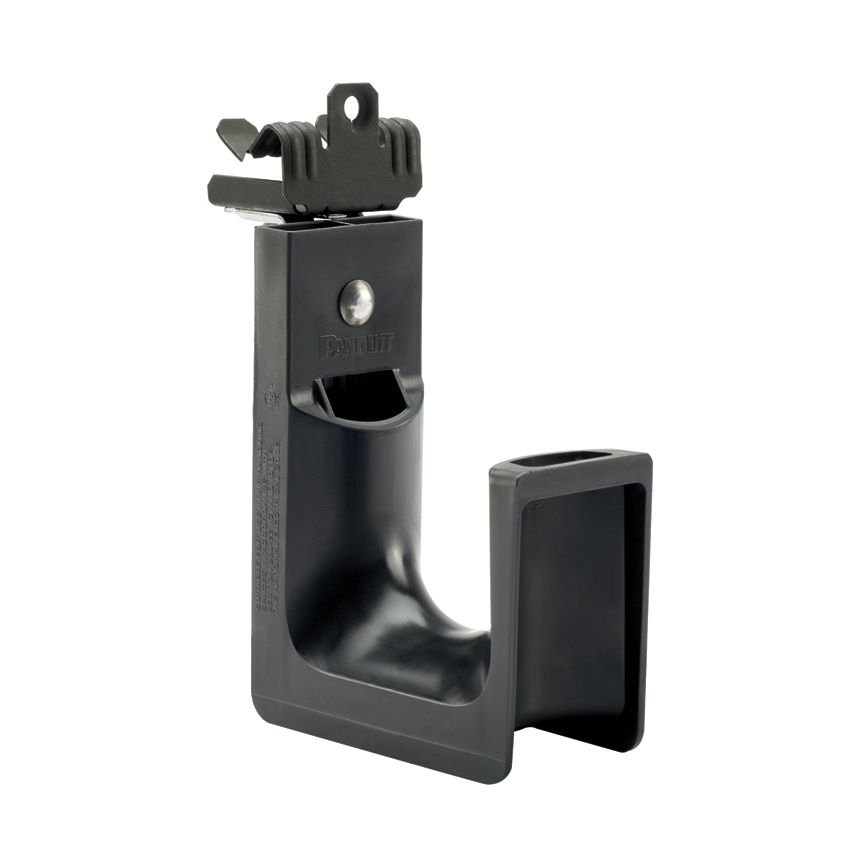

Panduit JP4HBC75RB-X20 | StrongHold J-Pro Cable Support
Quick, secure attachment for optimized cable routing with our 360° rotation bend radius control clamp. Preventing damage and ensuring peak performance in your air handling spaces.
Panduit J-Pro Cable Support System, 100 lb, Hammer-On Beam Clamp Mount, For Use With: 9/16 to 3/4 in THK Flanges, 101.6 mm Dia Hook, 4 in Dia Bundle, 4 in Static Load Capacity, Nylon 6.6, 8-1/2 in L x 8-1/2 in W
Specifications
Specifications
Panduit - JP4HBC75RB-X20 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JP4HBC75RB-X20 |
| Product Type | Cable Support |
| Application | Route High Performance Communication Cabling in Air Handling Spaces |
| Category 5e Cable Capacity | 200 |
| Category 6 Cable Capacity | 180 |
| Category 6A Cable Capacity | 115 |
| Color | Black |
| For Use With | Flanges |
| Includes | Hammer-on Beam Clamp |
| Material | Nylon 6.6/Metal |
| Maximum Flange Thickness (In.) | 0.75 |
| Maximum Flange Thickness (mm) | 19 |
| Maximum J-Hook Bundle Capacity (In.) | 4 |
| Overall Length (In.) | 8.5 |
| Overall Length (mm) | 138 |
| Overall Width (In.) | 8.5 |
| Overall Width (mm) | 138 |
| Overall Height (In.) | 9.4 |
| Overall Height (mm) | 238.7 |
| Sub Brand | StrongHold |
| Standards Met | UL, cULus Listed, RoHS Compliant |
| Static Load Capacity (kg) | 45.4 |
| UPC | 07498397738 |
Panduit - JP4HBC75RB-X20 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - JP4HBC75RB-X20 - Videos
| Panduit JP4HBC75RB-X20 Video 1 | Click to View |
|---|
