Panduit JP4SBC50RB-X20 | J Hook With Screw-on Beam Clamp Use With F...
Description
Description

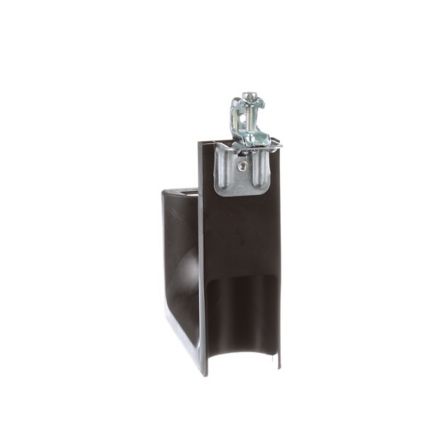

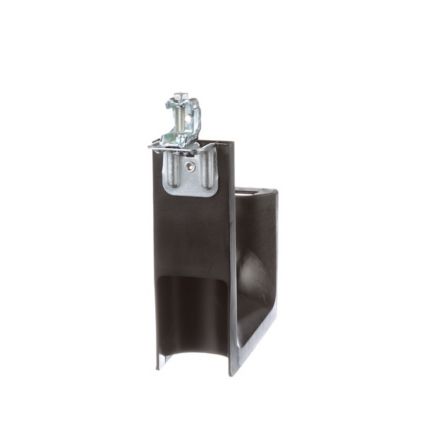

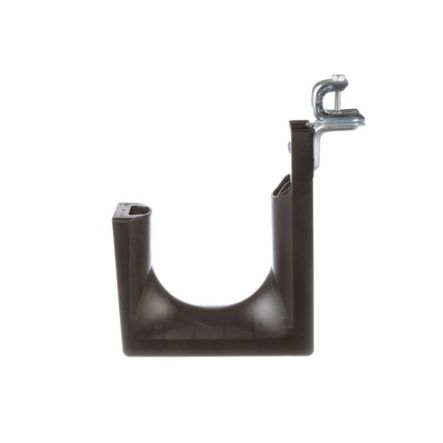

StrongHold JP4SBC50RB-X20 J-Pro J hook with Screw-On Beam Clamps have a patented design, featuring complete horizontal and vertical 1" bend radius control as well as 360 degree rotation. This feature prevents pinch points and degradation of cable performance. They are suitable for use in air handling spaces and are UL listed. For use with flanges 5/16" to 1/2" (7.9mm - 12.7mm) thick and 4.0" (101.6mm) max bundle capacity. Made of Nylon 6.6, are black in color and come in packages of 10.
Specifications
Specifications
Panduit - JP4SBC50RB-X20 - Product Categories
- StrongHold Contractor Products
- Communication/Low Voltage
Panduit - JP4SBC50RB-X20 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JP4SBC50RB-X20 |
| Item Description | StrongHold JP4SBC50RB-X20 J-Hook, Rotating, 0.5", Black, PA 6.6/Metal, Screw-On |
| Application | Route High Performance Communication Cabling in Air Handling Spaces |
| Product Type | J-Pro Cable Support |
| Category 5e Cable Capacity | 200 |
| Category 6 Cable Capacity | 180 |
| Category 6A Cable Capacity | 115 |
| Color | Black |
| For Use With | Flanges |
| Includes | Screw-On Beam Clamp |
| Material | Nylon 6.6/Metal |
| Maximum Flange Thickness (In.) | 0.5 |
| Maximum Flange Thickness (mm) | 12.7 |
| Maximum J-Hook Bundle Capacity | 101.6 |
| Mount Method | Screw-On Beam Clamp |
| Overall Height (In.) | 9.95 |
| Overall Height (mm) | 252.9 |
| Overall Length (In.) | 8.49 |
| Overall Length (mm) | 215.5 |
| Overall Width (In.) | 8.49 |
| Overall Width (mm) | 215.5 |
| Standards Met | UL, cULus Listed, RoHS Compliant |
| Sub Brand | StrongHold |
| Static Load Capacity (kg) | 22.7 |
| Static Load Capacity (lb) | 50 |
| Support Type | J-PRO J-Hook System |
| Part Features | Bend Radius Control, Smooth Pulling Surface |
Panduit - JP4SBC50RB-X20 - Package Information
| UPC | 07498397741 |
|---|---|
| Standard Pkg. Qty. | 10 |
| Standard Package Volume (cf) | 1.3196 |
| Standard Ctn. Qty. | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - JP4SBC50RB-X20 - Videos
| Video 1 | Click to View |
|---|
