Panduit JP75W-L20 J Hook for Wall mount applications, One 1/4"...
Description
Description

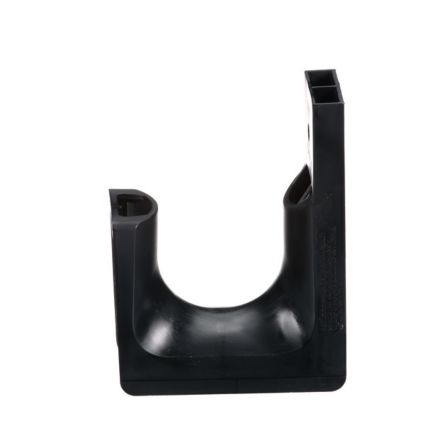

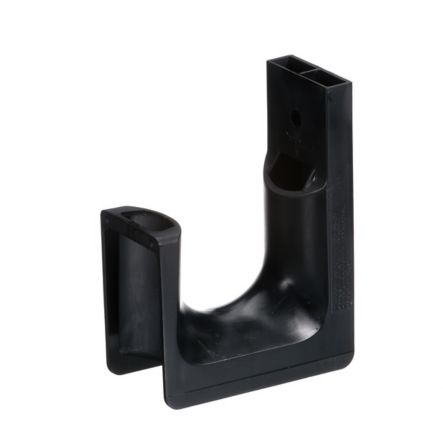

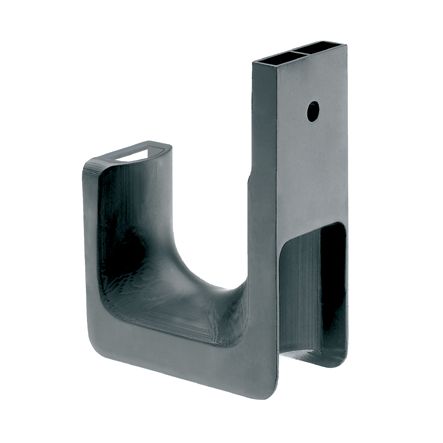

StrongHold JP75W-L20 J-Pro J hook with Wall Mount Bracket have a patented design, featuring complete horizontal and vertical 1" bend radius control. This feature prevents pinch points and degradation of cable performance. They are suitable for use in air handling spaces and are UL listed. Requires 1/4" (M6) mounting hole for user supplied screw, 0.75" (19.0mm) max bundle capacity. Made of Nylon 6.6, are black in color and come in packages of 50.
Panduit - JP75W-L20 - Features
- Complete horizontal and vertical 1"; bend radius control helps prevent degradation of cable performance
- UL 2043 and CAN/ULC S102.2 listed and are suitable for use in air handling spaces
- Durable non-metallic J Hook materials provide the ability to manage and support a large number of cables
- Pre-riveted assemblies allow for attachment to ceilings, beams, threaded rods, drop wires and under floor supports to meet requirements of a variety of applications
- Wide cable support base prevents pinch points that could cause damage to cables
- Cable tie channel allows user to easily install 3/4"; Tak-Ty(TM) Cable Ties to retain cable bundle
Specifications
Specifications
Panduit - JP75W-L20 - Product Categories
- Wire Routing, Management & Protection
- Cable & Conduit Hangers
Panduit - JP75W-L20 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JP75W-L20 |
| Item Description | StrongHold JP75W-L20 J-Hook Cable System, Black, PA 6.6, Wall Mount, .75", PK50 |
| Application | Route High Performance Communication Cabling in Air Handling Spaces |
| Product Type | J-Pro Cable Support |
| Category 5e Cable Capacity | 10 |
| Category 6 Cable Capacity | 8 |
| Category 6A Cable Capacity | 5 |
| Color | Black |
| Material | Nylon 6.6 |
| Maximum J-Hook Bundle Capacity | 19 |
| Mount Method | Wall Mount |
| Overall Height (In.) | 2.38 |
| Overall Height (mm) | 60.3 |
| Overall Length (In.) | 1.8 |
| Overall Length (mm) | 45.7 |
| Overall Width (In.) | 1.8 |
| Overall Width (mm) | 45.7 |
| Standards Met | UL, cULus Listed, RoHS Compliant |
| Sub Brand | StrongHold |
| Static Load Capacity (kg) | 6.8 |
| Static Load Capacity (lb) | 15 |
| Support Type | J-Pro J-Hook System |
| Part Features | Bend Radius Control, Smooth Pulling Surface |
Panduit - JP75W-L20 - Package Information
| UPC | 07498344020 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.3338 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Panduit - JP75W-L20 - Videos
| Video 1 | Click to View |
|---|
