Brand: Panduit
|
SKU:
10332118
Panduit KIMS-H430-M6 | KIMS-H430-M6 Cable Tie Mount, Blue, PA 6.6, Push Rivet, 0.735x0.49", PK1000
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit KIMS-H430-M6 | KIMS-H430-M6 Cable Tie Mount, Blue, PA 6.6, ...
Regular price
$1.46
Unit price
Description
Description

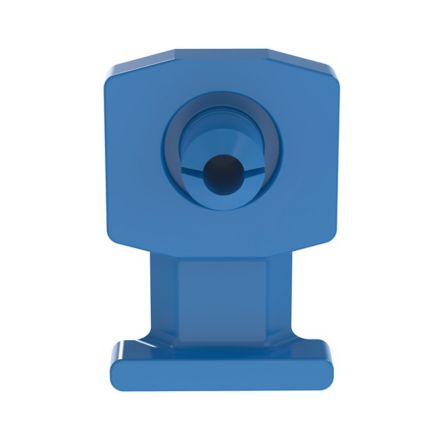

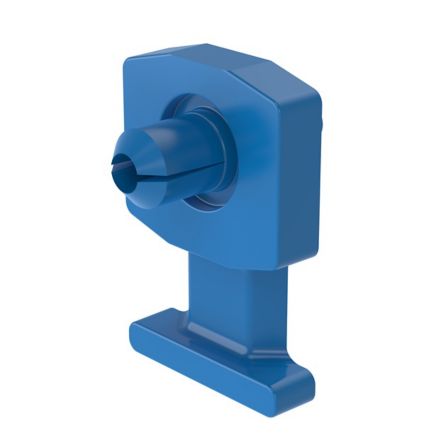

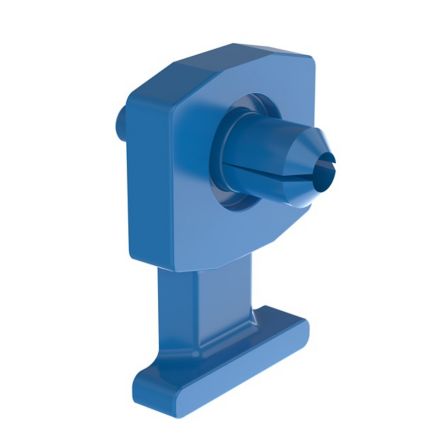

Panduit KIMS-H430-M6 | KIMS-H430-M6 Cable Tie Mount, Blue, PA 6.6, Push Rivet, 0.735x0.49", PK1000
Panduit KIMS-H430-M6 Push Rivet low profile cable tie mounts keep bundles close to the mounting surface and installs with an integral rivet for a strong, secure installation. Has a 0.169" (4.3mm) size hole for rivet application and is designed for use in indoor enviroments. Made of Nylon 6.6, is blue in color and comes in packages of 1000.
Panduit KIMS-H430-M6 | Panduit Kims-H500-M4 Push Rivet Cable Tie Mount
Panduit - KIMS-H430-M6 - Features
- Panduit KIMS-H430-M6 Push Rivet low profile cable tie mounts keep bundles close to the mounting surface and installs with an integral rivet for a strong, secure installation. Has a 0.169 (4.3mm) size hole for rivet application and is designed for use i n indoor enviroments. Made of Nylon 6.6, is blue in color and comes in packages of 1000.
- Technical Information: RoHS Compliant
Specifications
Specifications
Panduit - KIMS-H430-M6 - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - KIMS-H430-M6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | KIMS-H430-M6 |
| Item Description | KIMS-H430-M6 Cable Tie Mount, Blue, PA 6.6, Push Rivet, 0.735x0.49", PK1000 |
| Application | Knock-In Low Profile Mounts, Secures Wires to any Pre-Drilled Panel |
| Product Type | Cable Tie Mount |
| Color | Blue |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Push Rivet |
| Overall Height (In.) | 0.73 |
| Overall Height (mm) | 18.5 |
| Overall Length (In.) | 0.74 |
| Overall Length (mm) | 18.7 |
| Overall Width (In.) | 0.49 |
| Overall Width (mm) | 50.3 |
| Standards Met | RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
Panduit - KIMS-H430-M6 - Package Information
| UPC | 07498358509 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.1497 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 0.7483 |
Panduit - KIMS-H430-M6 - Videos
| Video 1 | Click to View |
|---|
