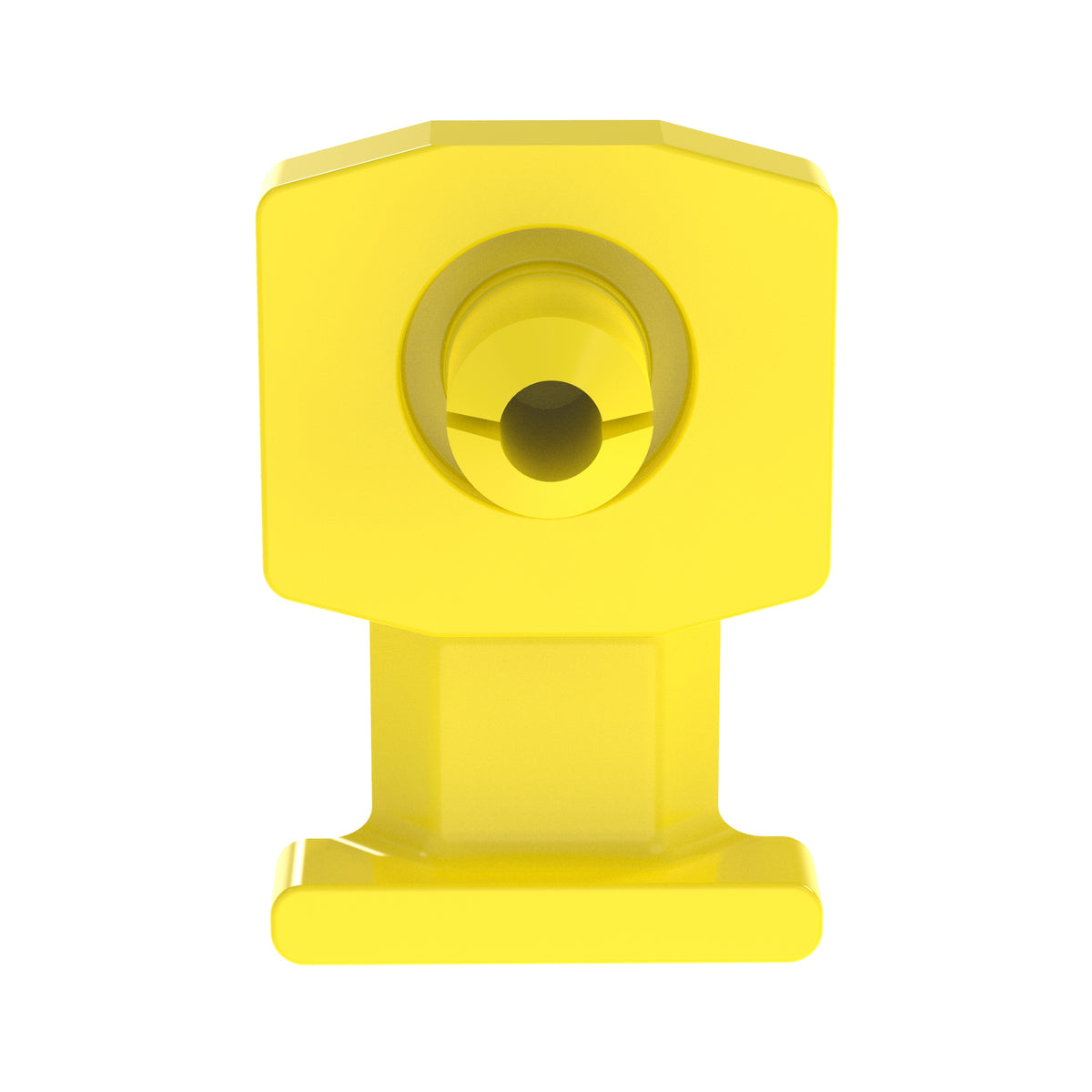

Panduit KIMS-H500-M4 | Knock-in Low Profile Mount
Description
Description
Panduit Cable Tie Mount, Knock In Low Profile, Integral Push Rivet Mount, 0.74 in Base Length, 0.49 in Base Width, Nylon 6.6/Polyamide, Yellow
Our knock-in low profile cable tie mount offers effortless wire securing. It keeps bundles close to surfaces with its low profile design and fits any pre-drilled panel for a strong, secure hold.
Panduit KIMS-H500-M4 Push Rivet low profile cable tie mounts keep bundles close to the mounting surface and installs with an integral rivet for a strong, secure installation. Has a 0.196 (5.0mm) size hole for rivet application and is designed for use i n indoor environments. Made of Nylon 6.6, is yellow in color and comes in packages of 1000.
Panduit - KIMS-H500-M4 - Features
- Applications: Knock-In Low Profile Mounts, Secures Wires to any Pre-Drilled Panel
- Eliminates screw
- Low profile design keeps bundle close to mounting surface
- Secure wire to any pre-drilled panel
- Can be installed in any panel thickness
- For use with miniature, intermediate and standard cable tie
Specifications
Specifications
Panduit - KIMS-H500-M4 - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 55120000 |
| Technical Information | RoHS Compliant |
| Product Type | Cable Tie Mount |
| Application | Knock-In Low Profile Mounts, Secures Wires to any Pre-Drilled Panel |
| Color | Yellow |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Push Rivet |
| Overall Length (In.) | 0.74 |
| Overall Length (mm) | 18.7 |
| Overall Width (In.) | 0.49 |
| Overall Width (mm) | 50.3 |
| Overall Height (In.) | 0.73 |
| Overall Height (mm) | 18.5 |
| Standards Met | RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
| UPC | 07498358511 |
Panduit - KIMS-H500-M4 - Package Information
| UPC | 07498358511 |
|---|---|
| Standard Packaging Quantity | 1000 |
| Standard Packaging Volume (cf) | 0.1497 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 0.7483 |
Panduit - KIMS-H500-M4 - Videos
| Panduit KIMS-H500-M4 Videos | Click to View |
|---|
