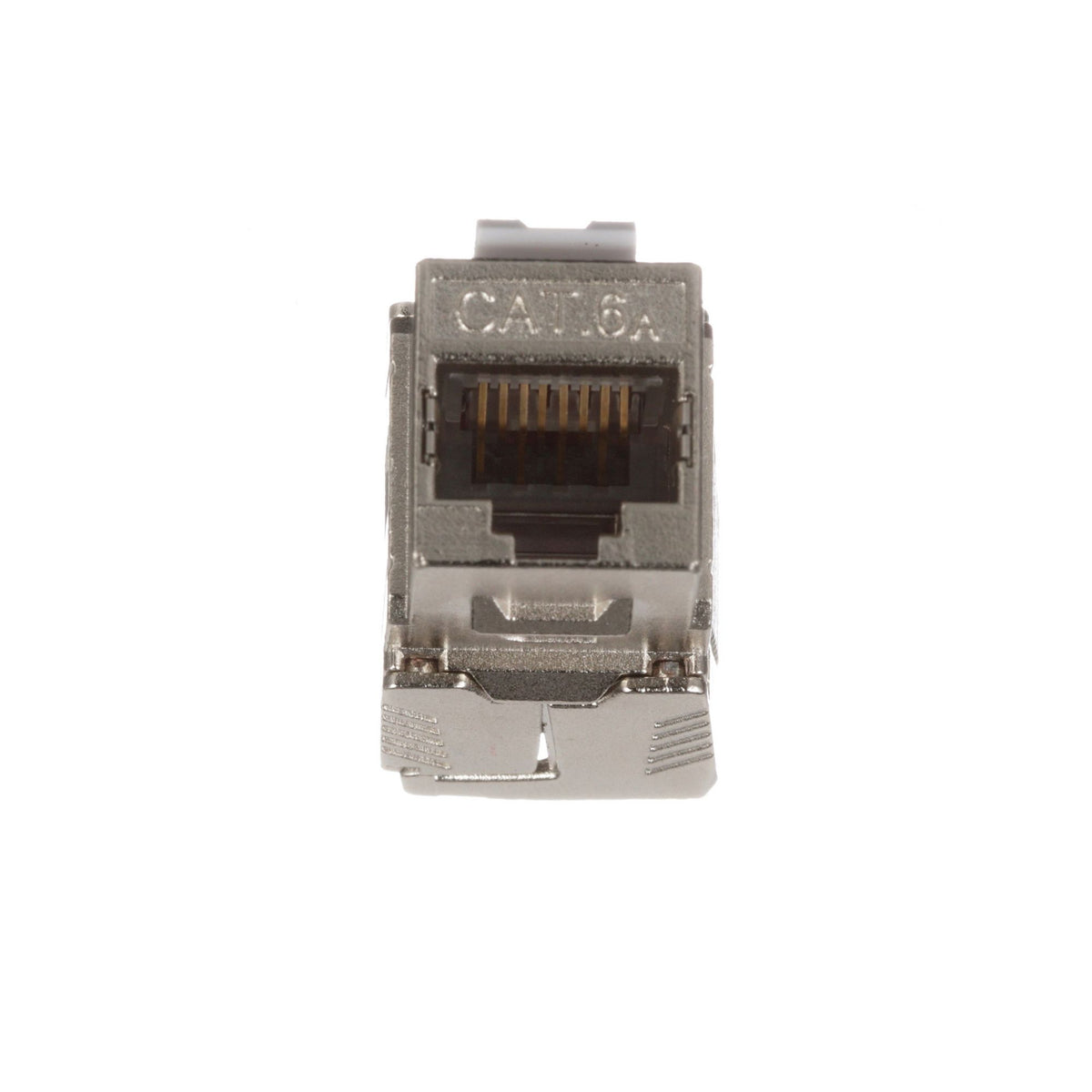

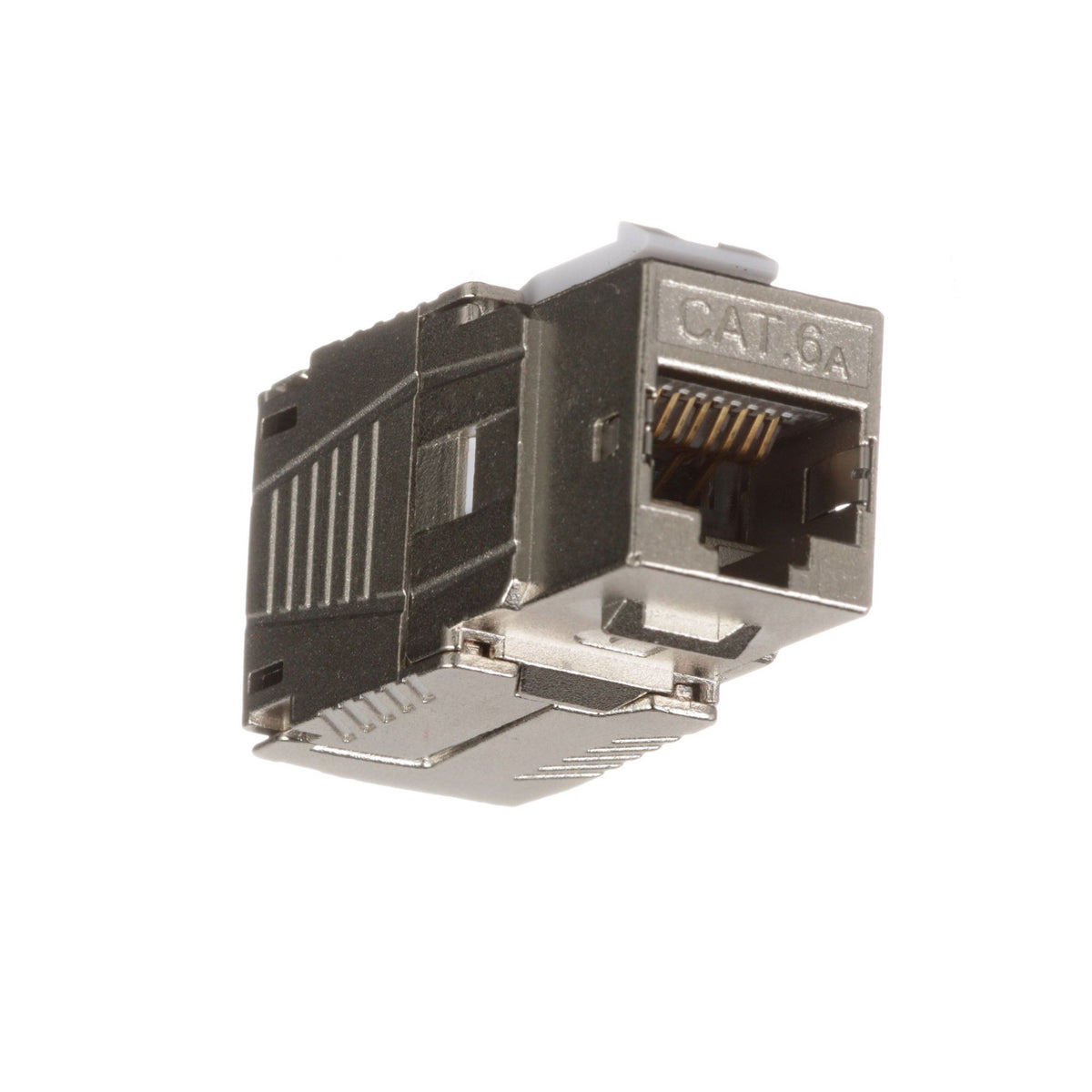

Panduit KJS6X88TC | Keystone Shielded TP RJ45 Cat 6A TG Jack Module
Regular price
$27.41
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit KJS6X88TC | Keystone Shielded TP RJ45 Cat 6A TG Jack Module
Regular price
$27.41
Unit price
Description
Description
Panduit KJS6X88TC | Keystone Shielded TP RJ45 Cat 6A TG Jack Module

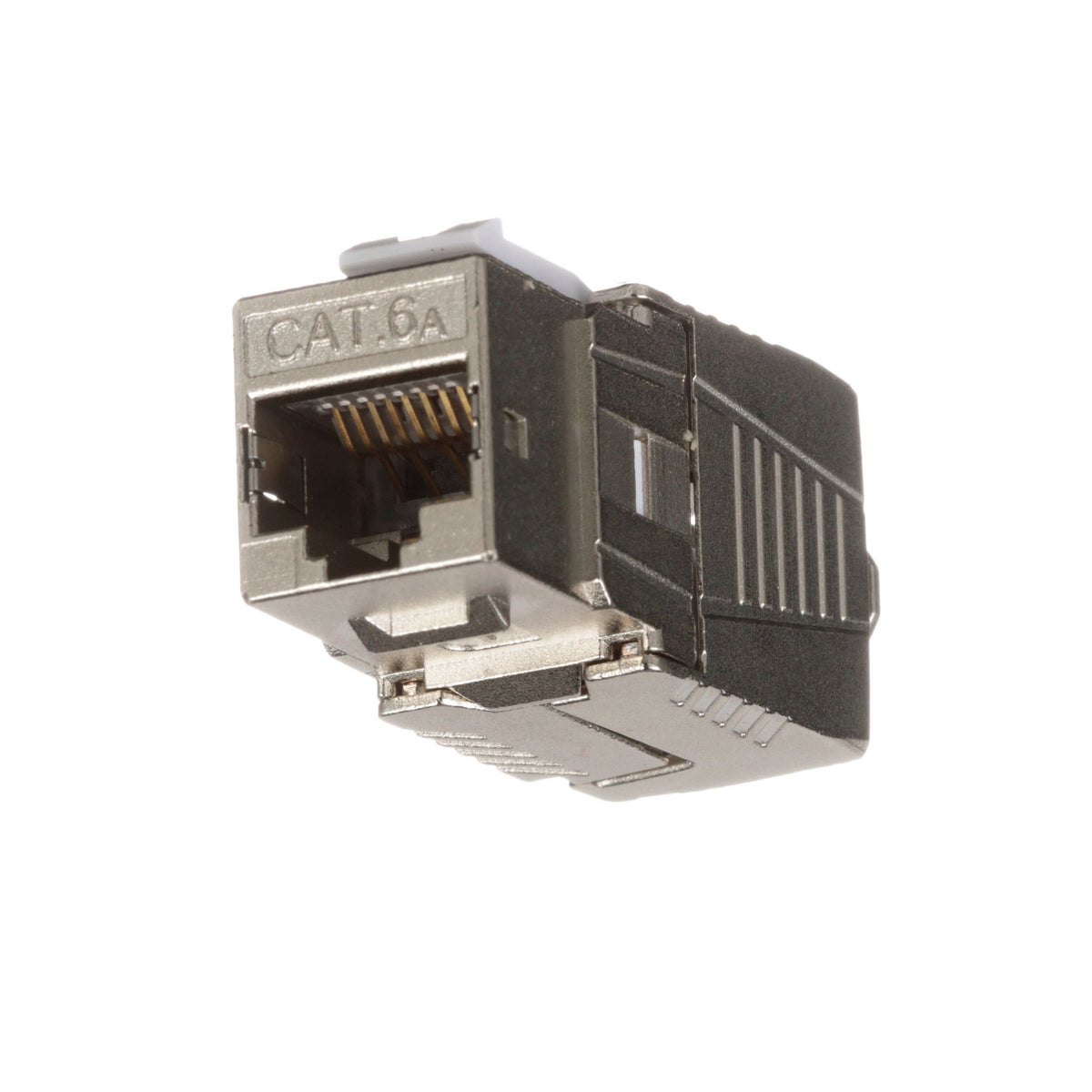

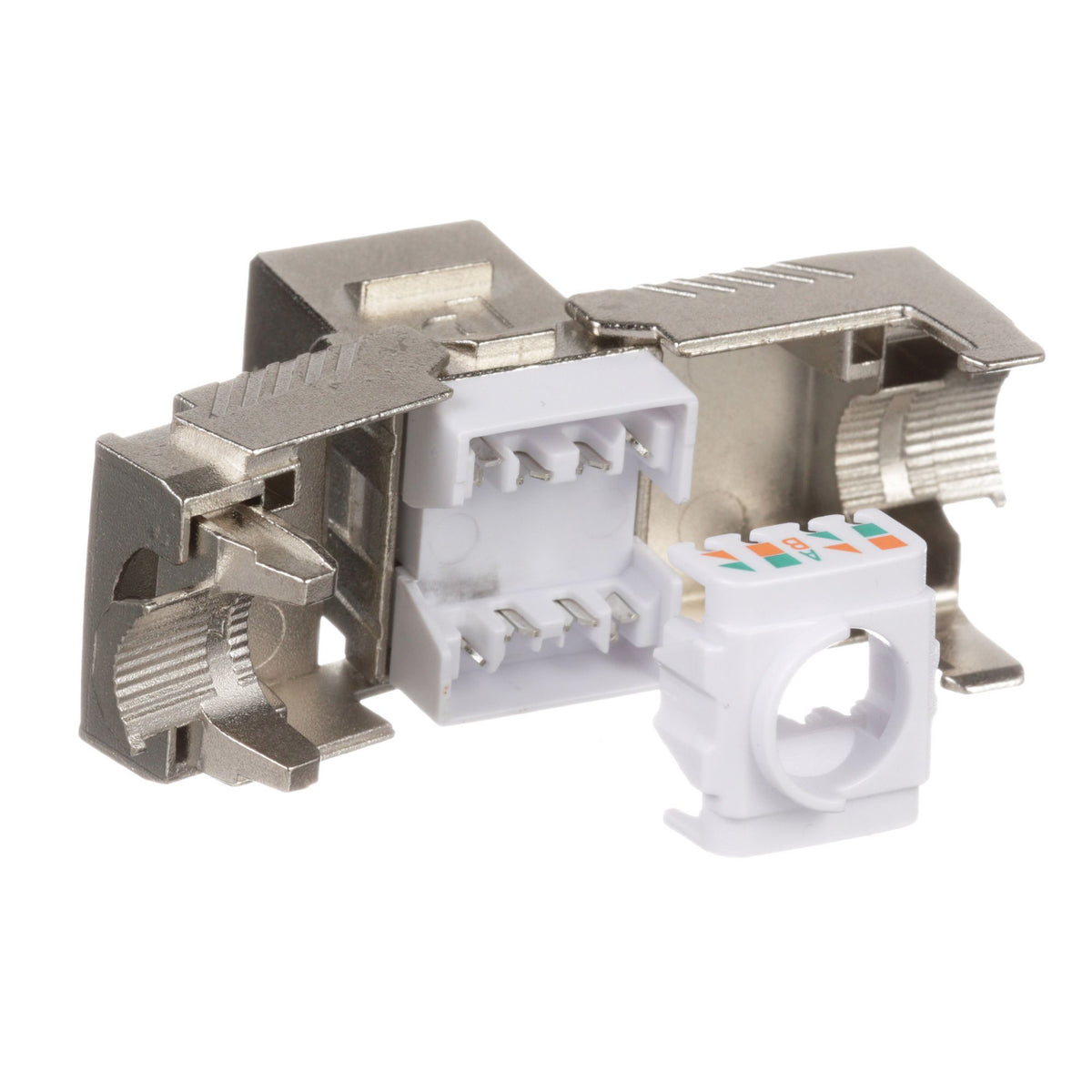

The keystone Cat 6A shielded RJ45 jack module is designed to terminate 4-pair, 22-24 AWG shielded twisted pair cable. Shielded jack modules use a forward motion termination method to optimize performance. The die-cast housing provides a robust design to protect against physical and electromagnetic damage. The jack module is silver.
Panduit KJS6X88TC Category 6a, Rj45, 10 Gb/s, 8-position, 8-wire Keystone Shielded Jack Module
Specifications
Specifications
Panduit - KJS6X88TC - Product Categories
- Copper Systems
- Jack Modules
Panduit - KJS6X88TC - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | KJS6X88TC |
| Item Description | Keystone Shielded TP RJ45 Cat 6A TG Jack Module |
| Product Type | Jack Module |
| Performance Level | Category 6A |
| Connector Type | Jack Module - Standard |
| Termination Style | Punchdown |
| Body Material | Die Cast |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Keystone |
| Wiring Scheme | T568A/T568B |
| Shield Type | Shielded (STP) |
| Sub Brand | Shielded Keystone |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Resistance Properties | Heat-Resistant |
| Color | Metallic |
| Standards Met | Meets ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA Channel Requirements for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz, Meets ANSI/TIA-568.2-D and ISO 11801 Category 6A Component Requirements at Swept Frequencies up to 500 MHz, Complies with ANSI/TIA-1096A, Meets IEC 60603-7 and IEC 60512-99-002, Rated for 750 Cycles with IEEE 802.3af, 802.3at, and 802.3bt type 1, 2, 3, and 4 for Power Up to 100W, and RoHS Compliant |
| Overall Depth (In.) | 1.64 |
| Overall Depth (mm) | 41.6 |
| Overall Height (In.) | 0.81 |
| Overall Height (mm) | 20.5 |
| Overall Length (In.) | 1.64 |
| Overall Length (mm) | 41.6 |
| Overall Width (In.) | 0.81 |
| Overall Width (mm) | 20.5 |
| Category | CATEGORY 6A |
| Number of Ports | 4 |
| UNSPSC Code | 39121444 |
Panduit - KJS6X88TC - Package Information
| UPC | 61305658017 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0032 |
| Standard Ctn. Quantity | 50 |
| Standard Ctn. Volume (cf) | 0.1605 |
