Brand: Panduit
|
SKU:
LAA1/0-56-X
Panduit LAA1/0-56-X | Compression Connectors - Lugs | UPC - 07498391025
Regular price
$12.16
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LAA1/0-56-X | Compression Connectors - Lugs | UPC - 0749839...
Regular price
$12.16
Unit price
Description
Description

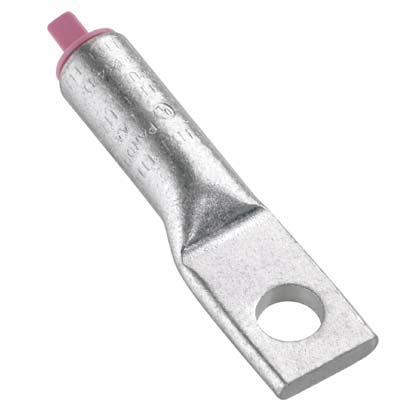

Panduit Compression Lug Connector, 1-Hole, Series: LLA, Stranded Aluminum/Copper Conductor, 1/0 AWG Conductor, Die Code: P50, 35 kV, 5/16 in Stud, Straight Tongue, 1.25 in L x 0.88 in W x 0.25 in THK Tongue, 3.22 in Overall Length, Long/Standard Barrel, 0.39 in ID x 0.64 in OD x 1.3 in L Barrel, Specifications: 1-9/16 in L Wire Strip, Tin Plated, 90 deg C, 1.56 in Mounting Hole, Aluminum, Tan
Features + Benefits
- Tin plated to inhibit corrosion
- Color coded end plug and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection
- Manufactured from high conductivity thick wall wrought aluminum
- Factory pre-filled with joint compound and sealed with easy pull out end plug to inhibit corrosion
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- For use with stranded aluminum or copper code conductors
Panduit LAA1/0-56-X | Compression Connectors - Lugs | UPC - 07498391025 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.491 |
| Stud Hole Size (mm) | 7.9 |
| Barrel Length (In.) | 1.3 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.88 |
| Tongue Width (mm) | 22.4 |
| Tongue Thickness (In.) | 0.25 |
| Tongue Thickness (mm) | 6.4 |
| Overall Length (In.) | 3.23 |
| Overall Length (mm) | 82 |
| Color Code | Tan |
| Panduit Die Index Number | P50 |
| Burndy Die Index Number | 296 |
| Wire Strip Length (In.) | 1.56 |
| Wire Strip Length (mm) | 39.7 |
| Includes | Connector barrel pre-filled with oxide inhibiting joint compound |
| Part Features | Dual rated,prefilled joint compound,enclosed barrel,tin plated to inhibit corrosion. |
Panduit LAA1/0-56-X | Compression Connectors - Lugs | UPC - 07498391025 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LAA6-14-X Product Page | Download and View |
| Part Drawings | LAA SERIES #6-1/0 ALUMINUM LUGS | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LAA1/0-56-X | Compression Connectors - Lugs | UPC - 07498391025 Environmental Information
| Panduit's RoHS Statement | Download and View |
