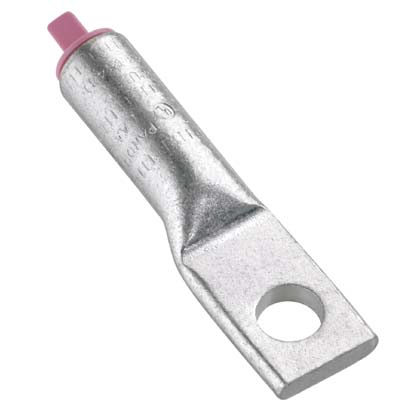

Panduit LAA1-38-X | Compression Connectors - Lugs | UPC - 07498391021
Regular price
$9.74
Unit price
Brand: Panduit
|
SKU:
PAN-LAA1-38-X
Regular price
$9.74
Unit price
Description
Description
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LLA, Aluminum/Copper Conductor, 1 AWG Conductor, Die Code: P45, 35 kV, 3/8 in Stud, Straight Tongue, 1-1/8 in L x 3/4 in W x 11/64 in THK Tongue, 2.63 in Overall Length, Long/Standard Barrel, 0.35 in ID x 0.53 in OD x 1 in L Barrel, 1 in Wire Strip Length, 90 deg C, 1 in Mounting Hole, Tin Plated Aluminum, Gold
Features + Benefits
- Tin-plated to inhibit corrosion
- Color-coded end plug and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection
- Manufactured from high conductivity thick wall wrought aluminum
- Factory pre-filled with joint compound and sealed with easy pull-out end plug to inhibit corrosion
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- For use with stranded aluminum or copper code conductors
- Used to provide permanent terminations for a variety of power and grounding applications
Panduit LAA1-38-X | Compression Connectors - Lugs | UPC - 07498391021 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Length (In.) | 0.98 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.75 |
| Tongue Width (mm) | 19.1 |
| Tongue Thickness (In.) | 0.17 |
| Tongue Thickness (mm) | 4.3 |
| Overall Length (In.) | 2.63 |
| Overall Length (mm) | 66.8 |
| Color Code | Gold |
| Panduit Die Index Number | P45 |
| Burndy Die Index Number | 471 |
| Wire Strip Length (In.) | 1 |
| Wire Strip Length (mm) | 25.4 |
| Includes | Connector barrel pre-filled with oxide inhibiting joint compound |
| Part Features | Dual rated,prefilled joint compound,enclosed barrel,tin plated to inhibit corrosion. |
Panduit LAA1-38-X | Compression Connectors - Lugs | UPC - 07498391021 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LAA6-14-X Product Page | Download and View |
| Part Drawings | LAA SERIES #6-1/0 ALUMINUM LUGS | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LAA1-38-X | Compression Connectors - Lugs | UPC - 07498391021 Environmental Information
| Panduit's RoHS Statement | Download and View |
