Panduit LAA2/0-12-5 | AlLug, 2/0AWG, 1/2StudPKG5
Regular price
$13.98
Unit price
Brand: Panduit
|
SKU:
PAN-LAA2/0-12-5
Regular price
$13.98
Unit price
Description
Description

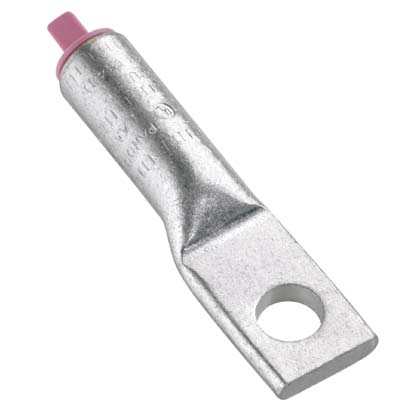

Panduit LAA2/0-12-5 | AlLug,2/0AWG,1/2StudPKG5
Our pre-filled, enclosed aluminum compression lug offers reliable connections and corrosion protection for demanding electrical applications.
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LLA, Aluminum/Copper Conductor, 2/0 AWG Conductor, Die Code: P54, 35 kV, 1/2 in Stud, Straight Tongue, 1.25 in L x 0.95 in W x 0.23 in THK Tongue, 3-1/4 in Overall Length, Long/Standard Barrel, 0.44 in ID x 0.69 in OD x 1.38 in L Barrel, 1-9/16 in L Wire Strip, Tin Plated, 90 deg C, 1-9/16 in Mounting Hole, Aluminum, Olive
Panduit - LAA2/0-12-5 - Features
- Tin plated to inhibit corrosion
- Color coded end plug and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection
- Manufactured from high conductivity thick wall wrought aluminum
- Factory pre-filled with joint compound and sealed with easy pull out end plug to inhibit corrosion
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- For use with stranded aluminum or copper code conductors
Specifications
Specifications
Panduit - LAA2/0-12-5 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LAA2/0-12-5 |
| Product Type | Compression Lug |
| Base Material | Aluminum |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | No |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Copper Code Conductor Size (AWG) | 2/0 |
| Aluminum Conductor Size (AWG) | 2/0 |
| Barrel Length (In.) | 1.3 |
| Barrel Length (mm) | 33.1 |
| Tongue Width (In.) | 0.95 |
| Tongue Width (mm) | 24.1 |
| Tongue Thickness (In.) | 0.23 |
| Tongue Thickness (mm) | 5.8 |
| Overall Length (In.) | 3.19 |
| Overall Length (mm) | 81 |
| UPC | 07498391031 |
