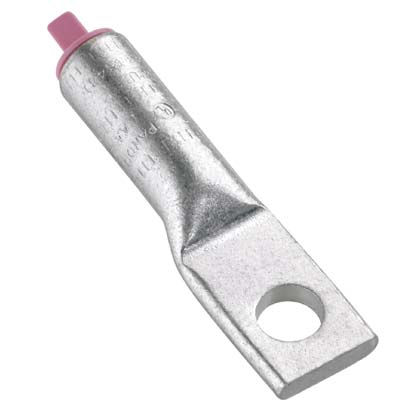

Panduit LAA250-38-5 | Compression Connectors - Lugs | UPC - 0749839...
Regular price
$22.42
Unit price
Brand: Panduit
|
SKU:
PAN-LAA250-38-5
Regular price
$22.42
Unit price
Description
Description
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LLA, Aluminum/Copper Conductor, 250 kcmil Conductor, Die Code: P71, 35 kV, 3/8 in Stud, Straight Tongue, 1.31 in L x 1.24 in W x 0.3 in THK Tongue, 3.67 in Overall Length, Long/Standard Barrel, 0.59 in ID x 0.91 in OD x 1.56 in L Barrel, 1-9/16 in L Wire Strip, Tin Plated, 90 deg C, 1-9/16 in Mounting Hole, Aluminum, Red
Features + Benefits
- Tin plated to inhibit corrosion
- Color coded end plug and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection
- Manufactured from high conductivity thick wall wrought aluminum
- Factory pre-filled with joint compound and sealed with easy pull out end plug to inhibit corrosion
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- For use with stranded aluminum or copper code conductors
Panduit LAA250-38-5 | Compression Connectors - Lugs | UPC - 07498391045 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Length (In.) | 1.56 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.24 |
| Tongue Width (mm) | 31.5 |
| Tongue Thickness (In.) | 0.3 |
| Tongue Thickness (mm) | 7.6 |
| Overall Length (In.) | 3.63 |
| Overall Length (mm) | 92.2 |
| Color Code | Red |
| Panduit Die Index Number | P71 |
| Burndy Die Index Number | 324 |
| Wire Strip Length (In.) | 1.56 |
| Wire Strip Length (mm) | 39.7 |
| Includes | Connector barrel pre-filled with oxide inhibiting joint compound |
| Part Features | Dual rated,prefilled joint compound,enclosed barrel,tin plated to inhibit corrosion. |
Panduit LAA250-38-5 | Compression Connectors - Lugs | UPC - 07498391045 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LAA6-14-X Product Page | Download and View |
| Part Drawings | LAA SERIES #2/0-250kcmil ALUMINUM LUGS | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LAA250-38-5 | Compression Connectors - Lugs | UPC - 07498391045 Environmental Information
| Panduit's RoHS Statement | Download and View |
