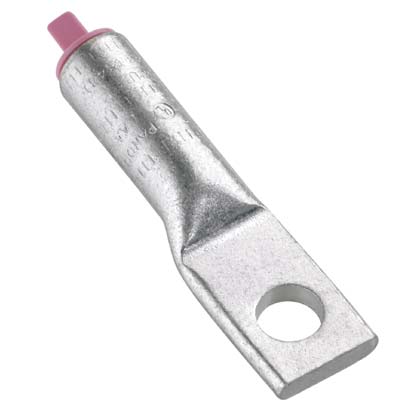

Panduit LAA4/0-38-5 | Compression Connectors - Lugs | UPC - 0749839...
Regular price
$22.42
Unit price
Brand: Panduit
|
SKU:
PAN-LAA4/0-38-5
Regular price
$22.42
Unit price
Description
Description
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LLA, Aluminum/Copper Conductor, 4/0 AWG Conductor, Die Code: P66, 35 kV, 3/8 in Stud, Straight Tongue, 1.31 in L x 1.19 in W x 0.32 in THK Tongue, 3.56 in Overall Length, Long/Standard Barrel, 0.55 in ID x 0.88 in OD x 1.5 in L Barrel, 1-3/4 in L Wire Strip, Tin Plated, 90 deg C, 1-3/4 in Mounting Hole, Aluminum, White
Features + Benefits
- Tin plated to inhibit corrosion
- Color coded end plug and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection
- Manufactured from high conductivity thick wall wrought aluminum
- Factory pre-filled with joint compound and sealed with easy pull out end plug to inhibit corrosion
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- For use with stranded aluminum or copper code conductors
Panduit LAA4/0-38-5 | Compression Connectors - Lugs | UPC - 07498391040 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Length (In.) | 1.44 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.19 |
| Tongue Width (mm) | 30.2 |
| Tongue Thickness (In.) | 0.32 |
| Tongue Thickness (mm) | 8.1 |
| Overall Length (In.) | 3.56 |
| Overall Length (mm) | 90.4 |
| Color Code | White |
| Panduit Die Index Number | P66 |
| Burndy Die Index Number | 298 |
| Wire Strip Length (In.) | 1.75 |
| Wire Strip Length (mm) | 44.5 |
| Includes | Connector barrel pre-filled with oxide inhibiting joint compound |
| Part Features | Dual rated,prefilled joint compound,enclosed barrel,tin plated to inhibit corrosion. |
Panduit LAA4/0-38-5 | Compression Connectors - Lugs | UPC - 07498391040 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LAA6-14-X Product Page | Download and View |
| Part Drawings | LAA SERIES #2/0-250kcmil ALUMINUM LUGS | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LAA4/0-38-5 | Compression Connectors - Lugs | UPC - 07498391040 Environmental Information
| Panduit's RoHS Statement | Download and View |
