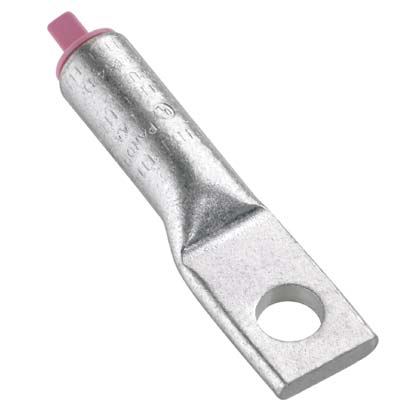

Panduit LAA4-14-X | Pan-Lug Aluminum Compression Lugs
Description
Description
Our pre-filled, enclosed aluminum compression lug offers reliable connections and corrosion protection for demanding electrical applications.
One-hole, aluminum, long barrel, #4 AWG, 1/4 (6.4mm) stud hole.
Panduit Compression Lug Connector, 1-Hole, Series: LAA, Stranded Aluminum/Copper Conductor, 4 AWG Conductor, Die Code: P37, 35 kV, 1/4 in Stud, Rectangle Tongue, 0.66 in W x 0.19 in THK Tongue, 2.05 in Overall Length, Long Barrel, 0.27 in ID x 0.47 in OD x 1.05 in L Barrel, 1-1/16 in L Wire Strip, Tin Plated, 90 deg C, 1.06 in Mounting Hole, Aluminum, Green
Panduit - LAA4-14-X - Features
- Straight angle
- Manufactured from high conductivity thick wall wrought aluminum
- Color coded end plug and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection
- Tin plated to inhibit corrosion
- For use with stranded aluminum or copper code conductors
- Factory pre-filled with joint compound and sealed with easy pull out end plug to inhibit corrosion
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
Specifications
Specifications
Panduit - LAA4-14-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LAA4-14-X |
| Barrel | Long |
| Bolt Hole | 1/4 Inch |
| Gauge | 4 Awg |
| Holes | 1 Hole |
| Inspection Hole | No |
| Lug Material | Aluminum |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Aluminum |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | No |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Copper Code Conductor Size (AWG) | 4 |
| Aluminum Conductor Size (AWG) | 4 |
| Barrel Length (In.) | 1.05 |
| Barrel Length (mm) | 26.7 |
| Tongue Width (In.) | 0.66 |
| Tongue Width (mm) | 16.8 |
| Tongue Thickness (In.) | 0.19 |
| Tongue Thickness (mm) | 4.8 |
| Overall Length (In.) | 2.05 |
| Overall Length (mm) | 52.1 |
| UPC | 07498391009 |
