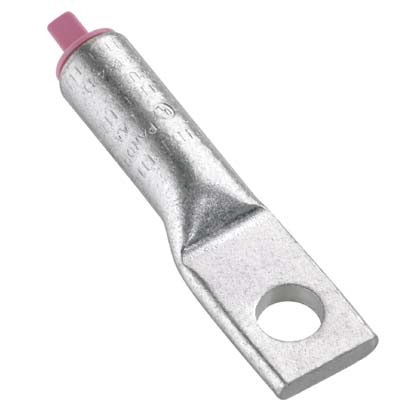

Panduit LAA500-58-2 | AlLug, 500kcmil, 5/8StudPKG2
Description
Description
Our pre-filled, enclosed aluminum compression lug offers reliable connections and corrosion protection for demanding electrical applications.
One-hole, aluminum, long barrel, 500 kcmil, 5/8 (15.9mm) stud hole.
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LLA, Aluminum/Copper Conductor, 500 kcmil Conductor, Die Code: P99, 35 kV, 3/8 in Stud, Straight Tongue, 0.45 in L x 1.75 in W x 0.44 in THK Tongue, 5-1/2 in Overall Length, Long/Standard Barrel, 0.84 in ID x 1.32 in OD x 3 in L Barrel, 3-1/16 in L Wire Strip, Tin Plated, 90 deg C, 3-1/16 in Mounting Hole, Aluminum, Pink
Panduit - LAA500-58-2 - Features
- Tin plated to inhibit corrosion
- Color coded end plug and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection
- Manufactured from high conductivity thick wall wrought aluminum
- Factory pre-filled with joint compound and sealed with easy pull out end plug to inhibit corrosion
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- For use with stranded aluminum or copper code conductors
Specifications
Specifications
Panduit - LAA500-58-2 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LAA500-58-2 |
| Barrel | Long |
| Bolt Hole | 5/8 Inch |
| Gauge | 500Kcmil (Aka Mcm) |
| Holes | 1 Hole |
| Inspection Hole | No |
| Lug Material | Aluminum |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Aluminum |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | No |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 5/8 |
| Stud Hole Size (mm) | 15.9 |
| Copper Code Conductor Size (kcmil) | 500 |
| Aluminum Conductor Size (kcmil) | 500 |
| Barrel Length (In.) | 3 |
| Barrel Length (mm) | 76.2 |
| Tongue Width (In.) | 1.75 |
| Tongue Width (mm) | 44.5 |
| Tongue Thickness (In.) | 0.44 |
| Tongue Thickness (mm) | 11.2 |
| Overall Length (In.) | 5.56 |
| Overall Length (mm) | 141.2 |
| UPC | 07498391065 |
