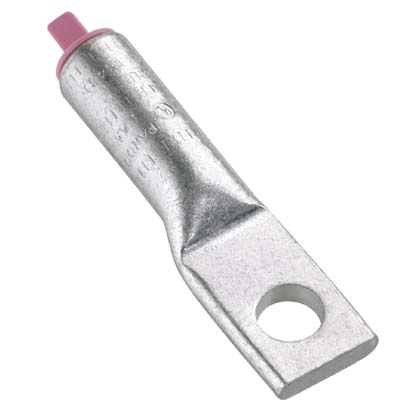

Panduit LAA750-58-1 | Pan-Lug Aluminum Compression Lugs
Description
Description
Our pre-filled, enclosed aluminum compression lug offers reliable connections and corrosion protection for demanding electrical applications.
Aluminum, long barrel, one-hole lug.
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LLA, Aluminum/Copper Conductor, 750 kcmil Conductor, Die Code: P125, 35 kV, 5/8 in Stud, Straight Tongue, 1.88 in L x 1.75 in W x 0.53 in THK Tongue, 6-1/2 in Overall Length, Long/Standard Barrel, 1.03 in ID x 1.59 in OD x 3.38 in L Barrel, 3-1/16 in L Wire Strip, Tin Plated, 90 deg C, 3.44 in Mounting Hole, Aluminum, Red
Panduit - LAA750-58-1 - Features
- Tin plated to inhibit corrosion
- Color coded end plug and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection
- Manufactured from high conductivity thick wall wrought aluminum
- Factory pre-filled with joint compound and sealed with easy pull out end plug to inhibit corrosion
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- For use with stranded aluminum or copper code conductors
- Manufactured from high conductivity thick wall wrought aluminum
- Factory pre-filled with joint compound and sealed with easy pull-out end plug to inhibit corrosion
- Color-coded end plug and PANDUIT and specified competitor die index numbers marked on barrel for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
Specifications
Specifications
Panduit - LAA750-58-1 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LAA750-58-1 |
| Barrel | Long |
| Bolt Hole | 5/8 Inch |
| Gauge | 750Kcmil (Aka Mcm) |
| Holes | 1 Hole |
| Inspection Hole | No |
| Lug Material | Aluminum |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Aluminum |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | No |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 5/8 |
| Stud Hole Size (mm) | 15.9 |
| Copper Code Conductor Size (kcmil) | 750 |
| Aluminum Conductor Size (kcmil) | 750 |
| Barrel Length (In.) | 3.38 |
| Barrel Length (mm) | 85.9 |
| Tongue Width (In.) | 1.75 |
| Tongue Width (mm) | 44.5 |
| Tongue Thickness (In.) | 0.53 |
| Tongue Thickness (mm) | 13.5 |
| Overall Length (In.) | 6.55 |
| Overall Length (mm) | 166.4 |
| UPC | 07498391075 |
