Panduit LAB1/0-38-X | AlLug, 2Hole, 1/0AWG, 3/8StudPKG10
Description
Description

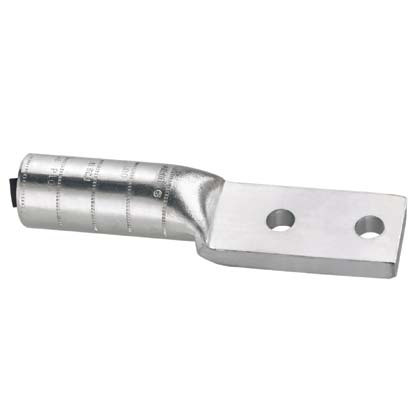

Simplify your high-power connections in harsh environments with our pre-filled, 2-hole compression lug, color-coded design for easy selection and corrosion resistance.
Panduit Compression Lug Connector, 2-Hole, Series: LAB, Aluminum/Copper Conductor, 1/0 AWG Conductor, Die Code: P50, 35 kV, 3/8 in Stud, Straight Tongue, 3.25 in L x 0.88 in W x 0.25 in THK Tongue, 5.33 in Overall Length, Long/Standard Barrel, 0.39 in ID x 0.64 in OD x 1.55 in L Barrel, Specifications: 1-9/16 in L Wire Strip, Tin Plated, 90 deg C, 1.56 in Mounting Hole, Aluminum, Tan
Panduit - LAB1/0-38-X - Features
- Tin plated to inhibit corrosion
- Color coded end plug and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection
- Manufactured from high conductivity thick wall wrought aluminum
- Factory pre-filled with joint compound and sealed with easy pull out end plug to inhibit corrosion
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
Specifications
Specifications
Panduit - LAB1/0-38-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LAB1/0-38-X |
| Product Type | Compression Lug |
| Base Material | Aluminum |
| Number of Stud Holes | 2 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | No |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Copper Code Conductor Size (AWG) | 1/0 |
| Aluminum Conductor Size (AWG) | 1/0 |
| Barrel Length (In.) | 1.5 |
| Barrel Length (mm) | 38.1 |
| Tongue Width (In.) | 0.88 |
| Tongue Width (mm) | 22.4 |
| Tongue Thickness (In.) | 0.25 |
| Tongue Thickness (mm) | 6.4 |
| UPC | 07498391125 |
