Panduit LAB1000-12-1 | Pan-Lug Compression Connectors - Lugs
Description
Description
Simplify your high-power connections in harsh environments with our pre-filled, 2-hole compression lug, color-coded design for easy selection and corrosion resistance.

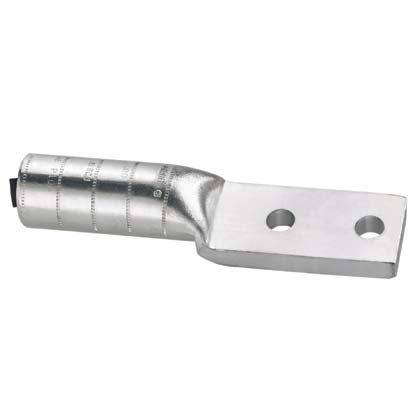

Aluminum, long barrel, two-hole lug.
Panduit Compression Lug Connector, 2-Hole, Series: LAB, Aluminum/Copper Conductor, 1000 kcmil Conductor, Die Code: P161, 35 kV, 1/2 in Stud, Straight Tongue, 3.63 in L x 2.56 in W x 0.63 in THK Tongue, 9.67 in Overall Length, Long/Standard Barrel, 1.19 in ID x 1.84 in OD x 4.67 in L Barrel, Specifications: 4-3/4 in L Wire Strip, Tin Plated, 90 deg C, 4-3/4 in Mounting Hole, Aluminum, Brown
Panduit - LAB1000-12-1 - Features
- Tin plated to inhibit corrosion
- Color coded end plug and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection
- Manufactured from high conductivity thick wall wrought aluminum
- Factory pre-filled with joint compound and sealed with easy pull out end plug to inhibit corrosion
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Manufactured from high conductivity thick wall wrought aluminum
- Factory pre-filled with joint compound and sealed with easy pull-out end plug to inhibit corrosion
- Color-coded end plug and PANDUIT and specified competitor die index numbers marked on barrel for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- Available with NEMA hole sizes and spacing
Specifications
Specifications
Panduit - LAB1000-12-1 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LAB1000-12-1 |
| Barrel | Long |
| Bolt Hole | 1/2 Inch |
| Gauge | 1000Kcmil (Aka Mcm) |
| Holes | 2 Hole |
| Inspection Hole | No |
| Lug Material | Aluminum |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Aluminum |
| Number of Stud Holes | 2 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | No |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Copper Code Conductor Size (kcmil) | 1000 |
| Aluminum Conductor Size (kcmil) | 1000 |
| Barrel Length (In.) | 4.67 |
| Barrel Length (mm) | 114.3 |
| Tongue Width (In.) | 2.56 |
| Tongue Width (mm) | 65 |
| Tongue Thickness (In.) | 0.63 |
| Tongue Thickness (mm) | 16 |
| UPC | 07498391190 |
