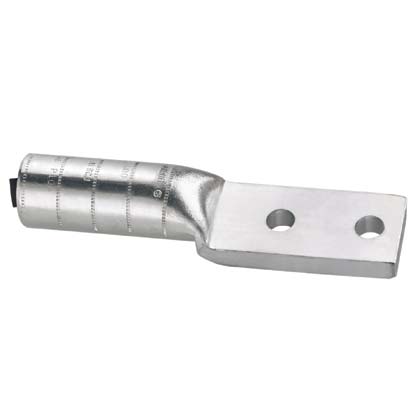

Panduit LAB300-12-2 | AlLug, 2Hole, 300kcmil, 1/2StudPKG2
Description
Description
Simplify your high-power connections in harsh environments with our pre-filled, 2-hole compression lug, color-coded design for easy selection and corrosion resistance.
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LAB, Aluminum/Copper Conductor, 300 kcmil Conductor, Die Code: P76, 35 kV, 1/2 in Stud, Straight Tongue, 3.56 in L x 1.36 in W x 0.34 in THK Tongue, 6.61 in Overall Length, Long/Standard Barrel, 0.65 in ID x 1.1 in OD x 2.3 in L Barrel, 2-5/16 in Wire Strip Length, 90 deg C, 2-5/16 in Mounting Hole, Tin Plated Aluminum, Blue
Panduit - LAB300-12-2 - Features
- Tin-plated to inhibit corrosion
- Color-coded end plug and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection
- Manufactured from high conductivity thick wall wrought aluminum
- Factory pre-filled with joint compound and sealed with easy pull-out end plug to inhibit corrosion
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
Specifications
Specifications
Panduit - LAB300-12-2 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LAB300-12-2 |
| Product Type | Compression Lug |
| Base Material | Aluminum |
| Number of Stud Holes | 2 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | No |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Copper Code Conductor Size (kcmil) | 300 |
| Aluminum Conductor Size (kcmil) | 300 |
| Barrel Length (In.) | 2.25 |
| Barrel Length (mm) | 57.2 |
| Tongue Width (In.) | 1.36 |
| Tongue Width (mm) | 34.5 |
| Tongue Thickness (In.) | 0.34 |
| Tongue Thickness (mm) | 8.6 |
| UPC | 07498391150 |
