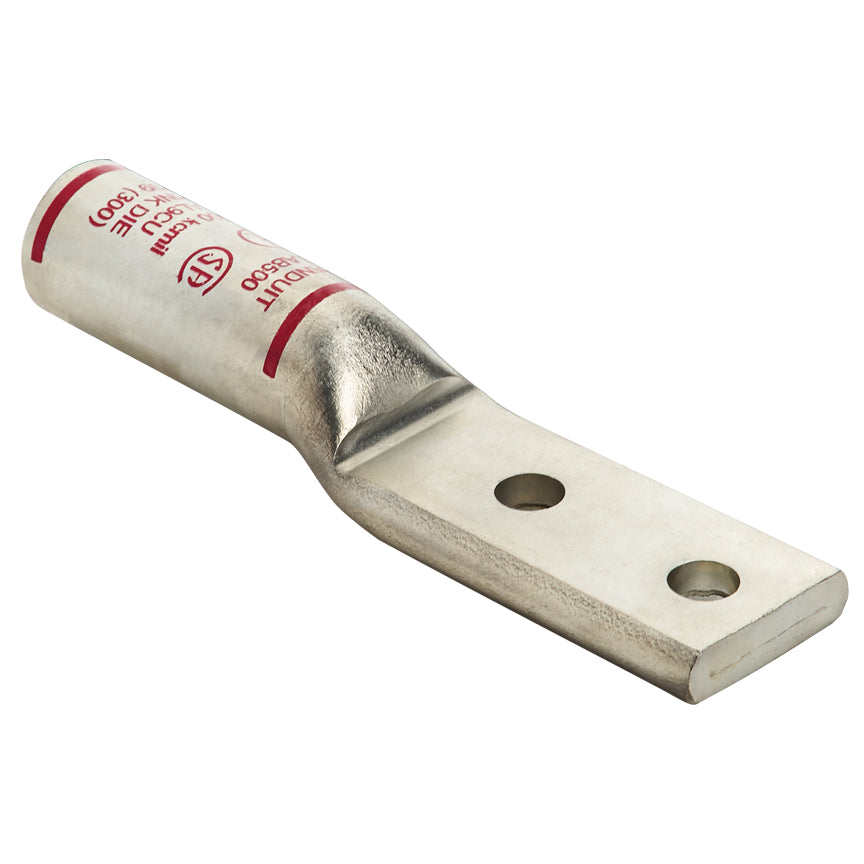

Panduit LAB4/0-12-5R | Pan-Lug Comp. Lug, Tin Plt Al, PK5
Description
Description
Simplify your high-power connections in harsh environments with our pre-filled, 2-hole compression lug, color-coded design for easy selection and corrosion resistance.
Aluminum Compression Lug, 2 Hole, 4/0 AWG, 1/2 (12.7mm) Stud
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LAB, Aluminum/Copper Conductor, 4/0 AWG Conductor, Die Code: P66, 35 kV, 1/2 in Stud, Standard Straight Tongue, 3.38 in L x 1.19 in W x 0.31 in THK Tongue, 5.98 in Overall Length, Enclosed/Standard Barrel, 0.59 in ID x 0.91 in OD x 1.8 in L Barrel, 1-3/4 in L Wire Strip, 1-3/4 in Stud Hole Spacing, 90 deg C, Tin Plated Aluminum, White
Panduit - LAB4/0-12-5R - Features
- Tin-plated to inhibit corrosion
- Color-coded end plug and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection
- Manufactured from high conductivity thick wall wrought aluminum
- Factory pre-filled with joint compound and sealed with easy pull-out end plug to inhibit corrosion
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Manufactured from high conductivity thick wall wrought aluminum
- Factory pre-filled with joint compound and sealed with easy pull-out end plug to inhibit corrosion
- Color-coded end plug and PANDUIT and specified competitor die index numbers marked on barrel for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- Available with NEMA hole sizes and spacing
Specifications
Specifications
Panduit - LAB4/0-12-5R - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LAB4/0-12-5R |
| Barrel | Long |
| Bolt Hole | 1/2 Inch |
| Gauge | 4/0 Awg |
| Holes | 2 Hole |
| Inspection Hole | No |
| Lug Material | Aluminum |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Aluminum |
| Number of Stud Holes | 2 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | No |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Copper Code Conductor Size (AWG) | 4/0 |
| Aluminum Conductor Size (AWG) | 4/0 |
| Barrel Length (In.) | 1.75 |
| Barrel Length (mm) | 44.5 |
| Tongue Width (In.) | 1.19 |
| Tongue Width (mm) | 30.3 |
| Tongue Thickness (In.) | 0.31 |
| Tongue Thickness (mm) | 7.9 |
| UPC | 07498306985 |
