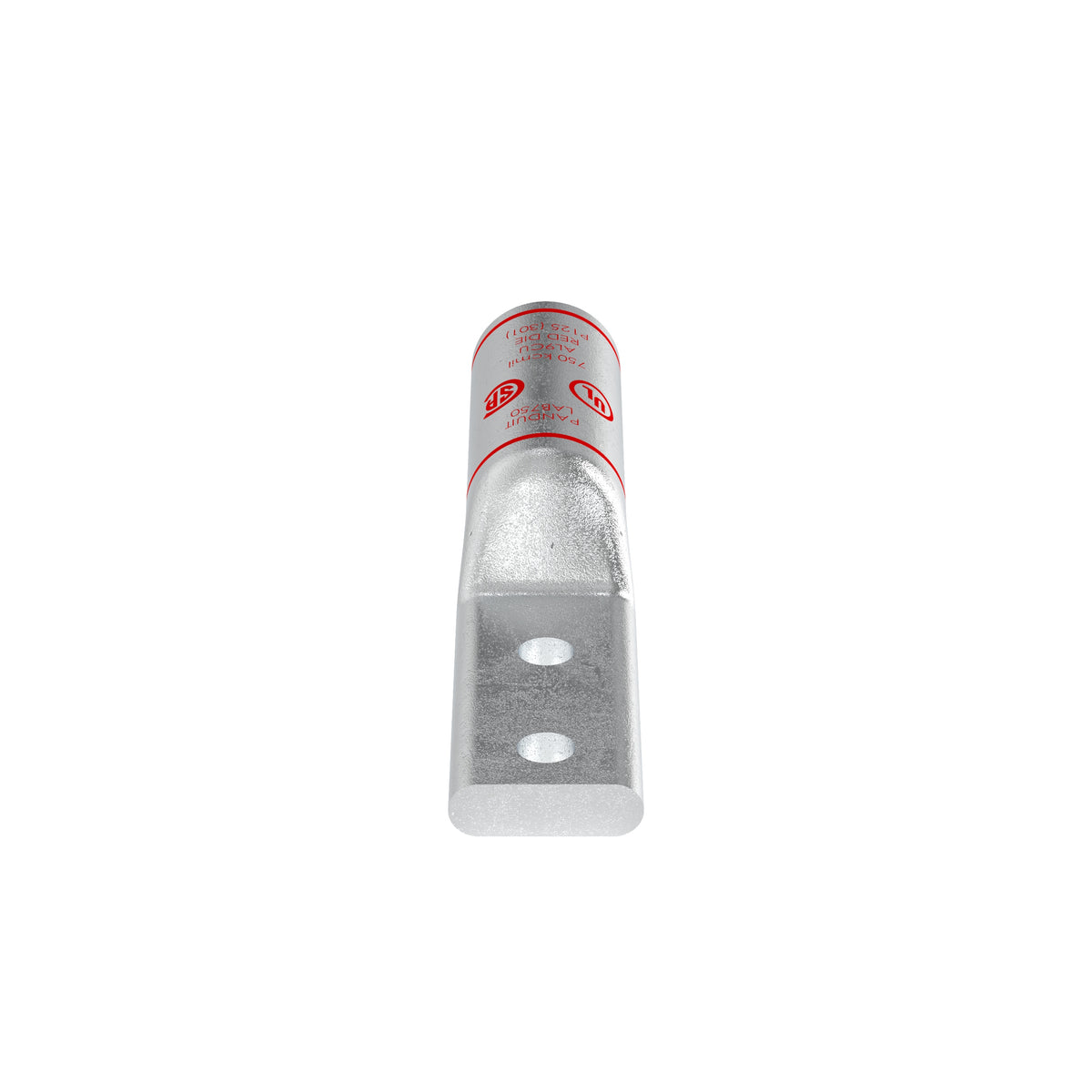

Panduit LAB750-12-1R | Aluminum Compression Lug
Description
Description
Simplify your high-power connections in harsh environments with our pre-filled, 2-hole compression lug, color-coded design for easy selection and corrosion resistance.
The LAB750-12-1R Tin-Plated Aluminum Compression Lug, two-hole, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion , and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C.
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LAB, Aluminum/Copper Conductor, 750 kcmil Conductor, Die Code: P125, 35 kV, 1/2 in Stud, Standard Straight Tongue, 3.63 in L x 1.74 in W x 0.54 in THK Tongue, 8-1/4 in Overall Length, Enclosed/Standard Barrel, 1.03 in ID x 1.59 in OD x 3.44 in L Barrel, 3-7/16 in L Wire Strip, 1-3/4 in Stud Hole Spacing, 90 deg C, 3.44 in Mounting Hole, Tin Plated Aluminum, Red
Panduit - LAB750-12-1R - Features
- Tin-plated to inhibit corrosion
- Color-coded end plug and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection
- Manufactured from high conductivity thick wall wrought aluminum
- Factory pre-filled with joint compound and sealed with easy pull-out end plug to inhibit corrosion
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
Specifications
Specifications
Panduit - LAB750-12-1R - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LAB750-12-1R |
| Barrel | Long |
| Bolt Hole | 1/2 Inch |
| Gauge | 750Kcmil (Aka Mcm) |
| Holes | 2 Hole |
| Inspection Hole | No |
| Lug Material | Aluminum |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Aluminum |
| Number of Stud Holes | 2 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | No |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Copper Code Conductor Size (kcmil) | 750 |
| Aluminum Conductor Size (kcmil) | 750 |
| Barrel Length (In.) | 3.44 |
| Barrel Length (mm) | 87.4 |
| Tongue Width (In.) | 1.74 |
| Tongue Width (mm) | 44.2 |
| Tongue Thickness (In.) | 0.54 |
| Tongue Thickness (mm) | 13.8 |
| UPC | 07498306990 |
Panduit - LAB750-12-1R - Videos
| Panduit LAB750-12-1R Video 1 | Click to View |
|---|
