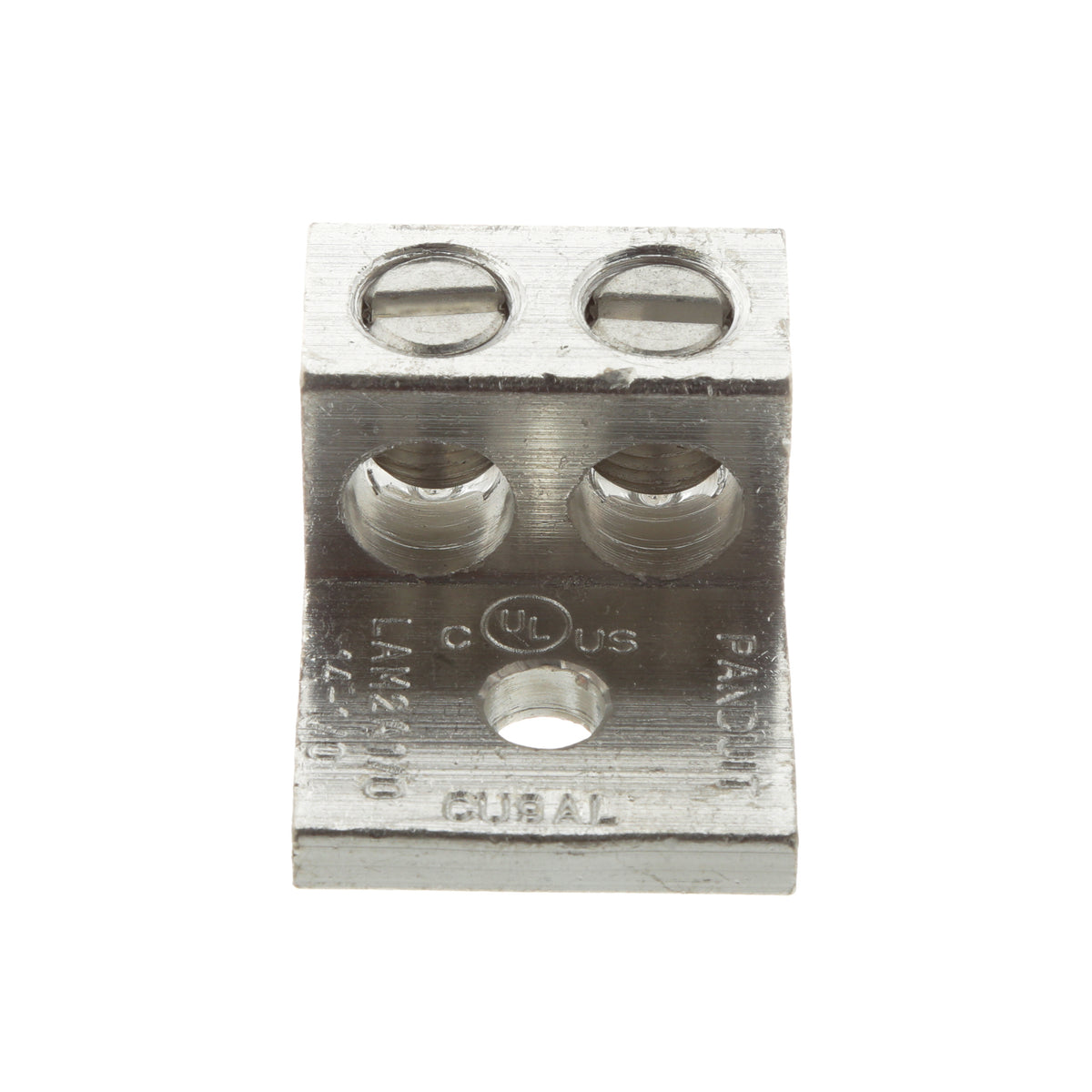

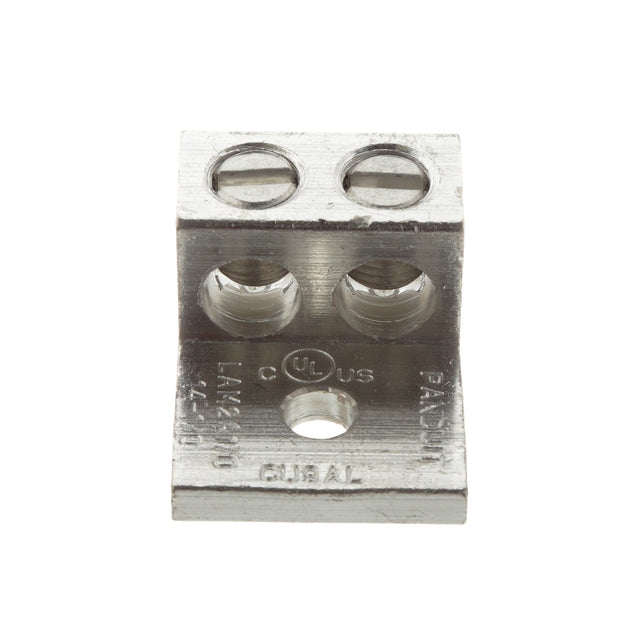

Panduit LAM2A1/0-14-6Y | Pan-Lug Mechanical Lug
Description
Description
Secure and reliable aluminum connections for various wire sizes with our mechanical lug, designed to accommodate a single wire, ideal for use in electrical applications.
Aluminum, dual barrel, one-hole tongue connector type LAM2A.
Panduit Mechanical Lug, 2-Barrel, Series: LAM2A, Stranded Aluminum/Copper Conductor, 14 to 1/0 AWG Conductor, 1/4 in Stud, 1 Bolt Holes, 0.85 in L x 1.13 in W x 0.19 in THK Tongue, Straight Tongue, 600 VAC, Specifications: Slotted Head Screw, 0.62 in L Wire Strip, 90 deg C, Aluminum, Tin Plated, 1.47 in L x 1.13 in W x 0.78 in H Dimensions
Panduit - LAM2A1/0-14-6Y - Features
- Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Wide wire range taking capability minimizes inventory requirements
- Inspection window to visually assure full conductor insertion
- Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
- Dual barrel provides termination of two conductors
- Dual barrel provides termination of two conductors
- Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Tin-plated to inhibit corrosion
- Wide wire range-taking capability minimizes inventory requirements
- Inspection window to visually assure full conductor insertion
- Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
- UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90C
- Available with NEMA hole sizes and spacing
Specifications
Specifications
Panduit - LAM2A1/0-14-6Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LAM2A1/0-14-6Y |
| Bolt Hole | 1/4 Inch |
| Gauge | #1/0 - #14 |
| Holes | 1 Hole |
| Inspection Hole | No |
| Lug Material | Aluminum |
| Type | Mechanical |
| UNSPSC Code | 39121400 |
| Product Type | Mechanical Lug |
| Base Material | Aluminum |
| Number of Stud Holes | 1 |
| Barrel Type | Two Barrel |
| Tongue Type | Straight Tongue |
| Tongue Angle | Straight |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Screw Type | Slotted |
| Maximum Aluminum Conductor Size (AWG) | 1/0 |
| Minimum Aluminum Conductor Size (AWG) | 14 |
| Maximum Copper Conductor Size (AWG STR) | 1/0 |
| Minimum Copper Conductor Size (AWG STR) | 14 |
| Tongue Length (In.) | 0.85 |
| Tongue Length (mm) | 21.6 |
| Tongue Width (In.) | 1.13 |
| Tongue Width (mm) | 28.7 |
| Tongue Thickness (In.) | 0.19 |
| Tongue Thickness (mm) | 4.8 |
| Overall Length (In.) | 1.48 |
| UPC | 07498359218 |
