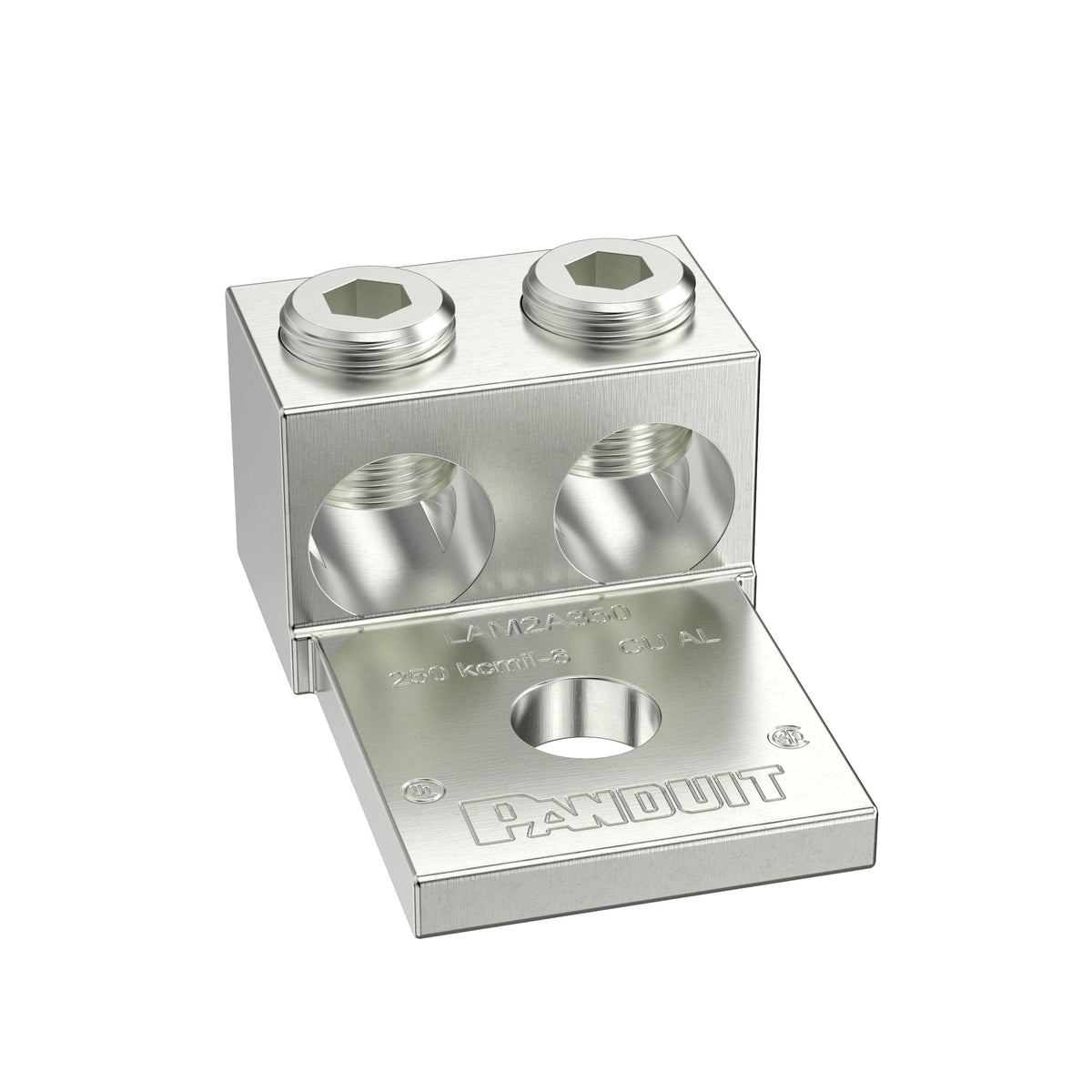

Panduit LAM2A350-12-6Y | Pan-Lug Mechanical Lug
Description
Description
Secure and reliable aluminum connections for various wire sizes with our mechanical lug, designed to accommodate a single wire, ideal for use in electrical applications.
Panduit Mechanical Lug, 2-Barrel, Series: LAM2A, Stranded Aluminum/Copper Conductor, 6 AWG to 350 kcmil Conductor, 1/2 in Stud, 1 Bolt Holes, 1.74 in L x 1.73 in W x 0.25 in THK Tongue, Straight Tongue, 600 VAC, Specifications: 5/16 in Hex, 1.13 in L Wire Strip, 90 deg C, Aluminum, Tin Plated, 2.87 in L x 1.73 in W x 1.25 in H Dimensions
Panduit - LAM2A350-12-6Y - Features
- Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Wide wire range taking capability minimizes inventory requirements
- Inspection window to visually assure full conductor insertion
- Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
- Dual barrel provides termination of two conductors
Specifications
Specifications
Panduit - LAM2A350-12-6Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LAM2A350-12-6Y |
| Product Type | Mechanical Lug |
| Base Material | Aluminum |
| Number of Stud Holes | 1 |
| Barrel Type | Two Barrel |
| Tongue Type | Straight Tongue |
| Tongue Angle | Straight |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Screw Type | Hex |
| Maximum Aluminum Conductor Size (kcmil) | 350 |
| Minimum Aluminum Conductor Size (AWG) | 6 |
| Maximum Copper Conductor Size (kcmil) | 350 |
| Minimum Copper Conductor Size (AWG STR) | 6 |
| Tongue Length (In.) | 1.75 |
| Tongue Length (mm) | 44.4 |
| Tongue Width (In.) | 1.73 |
| Tongue Width (mm) | 43.9 |
| Tongue Thickness (In.) | 0.28 |
| Tongue Thickness (mm) | 7.1 |
| Overall Length (In.) | 2.88 |
| UPC | 07498359269 |
