Description
Description

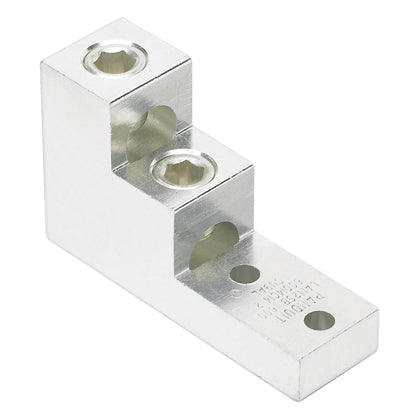

Panduit Mechanical Lug, 2-Barrel Vertical, Series: LAM2SB, Stranded Aluminum/Copper Conductor, 2 AWG to 600 kcmil Conductor, 3/8 in Stud, 2 Bolt Holes, 2.34 in L x 1.5 in W x 0.75 in THK Tongue, Straight Tongue, 600 VAC, Specifications: 3/8 in Hex, 1.38 in Stud Hole Spacing, 90 deg C, Aluminum, Tin Plated, 4.91 in L x 1.5 in W x 3 in H Dimensions
Features + Benefits
- Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Wide wire range taking capability minimizes inventory requirements
- Inspection window to visually assure full conductor insertion
- Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
- Tin plated to inhibit corrosion
- Dual barrel provides termination of two conductors
Panduit LAM2SB600-38-1Y | Mechanical Connectors - Lugs | UPC - 07498359285 Key Specs
| Application | Stranded Aluminum or Copper Code Conductor |
| Note | LAM2SB600-38-1Y replaces LAM2SB600-38-1 |
| Product Type | Mechanical Connectors - Lugs |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Spacing (In.) | 1.38 |
| Stud Hole Spacing (mm) | 35.1 |
| Number of Holes | 2 |
| Tongue Type | Straight |
| Tongue Length (In.) | 2.34 |
| Tongue Thickness (In.) | 0.75 |
| Tongue Width (In.) | 1.5 |
| Tongue Width (mm) | 38.1 |
| Overall Height (In.) | 3 |
| Overall Height (mm) | 76.2 |
| Overall Length (In.) | 4.91 |
| Overall Length (mm) | 124.7 |
| Standards Met | UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C |
| Sub Brand | Pan-Lug |
| Part Features | Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. |
Panduit LAM2SB600-38-1Y | Mechanical Connectors - Lugs | UPC - 07498359285 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LAM2SB600-38-1Y Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LAM2SBrev03 | Download and View |
Panduit LAM2SB600-38-1Y | Mechanical Connectors - Lugs | UPC - 07498359285 Environmental Information
| Panduit's RoHS Statement | Download and View |
