Panduit LAM3D350-12-1Y | Al, MechLug, 4H, 3B, #6A-350K, 1/2S, EA
Description
Description
Secure and reliable aluminum connections for various wire sizes with our mechanical lug, designed to accommodate a single wire, ideal for use in electrical applications.

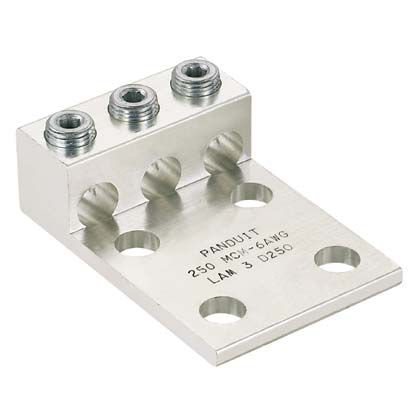

Panduit Mechanical Lug, 3-Barrel, Series: LAM3D, Stranded Aluminum/Copper Conductor, 6 AWG to 350 kcmil Conductor, 1/2 in Stud, 4 Bolt Holes, 3.25 in L x 3.5 in W x 0.31 in THK Tongue, Straight Tongue, 600 VAC, Specifications: 5/16 in Hex, 1-3/4 in Stud Hole Spacing, 1-1/4 in L Wire Strip, 90 deg C, Aluminum, Tin Plated, 4.5 in L x 3.5 in W x 1.38 in H Dimensions
Panduit - LAM3D350-12-1Y - Features
- Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Wide wire range taking capability minimizes inventory requirements
- Inspection window to visually assure full conductor insertion
- Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
- Triple barrel provides termination of three conductors
- Tin plated to inhibit corrosion
Specifications
Specifications
Panduit - LAM3D350-12-1Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LAM3D350-12-1Y |
| Product Type | Mechanical Lug |
| Base Material | Aluminum |
| Number of Stud Holes | 4 |
| Barrel Type | Three-Barrel |
| Tongue Type | Straight Tongue |
| Tongue Angle | Straight |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Screw Type | Hex |
| Maximum Aluminum Conductor Size (kcmil) | 350 |
| Minimum Aluminum Conductor Size (AWG) | 6 |
| Maximum Copper Conductor Size (kcmil) | 350 |
| Minimum Copper Conductor Size (AWG STR) | 6 |
| Tongue Length (In.) | 3.25 |
| Tongue Length (mm) | 82.6 |
| Tongue Width (In.) | 3.5 |
| Tongue Width (mm) | 76.2 |
| Tongue Thickness (In.) | 0.31 |
| UPC | 07498359372 |
Panduit - LAM3D350-12-1Y - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
