Panduit LAM4SB600-38-1Y | Pan-Lug Mech Con, Two Hole Lug, Tin Plt A...
Description
Description
Secure and reliable aluminum connections for various wire sizes with our mechanical lug, designed to accommodate a single wire, ideal for use in electrical applications.

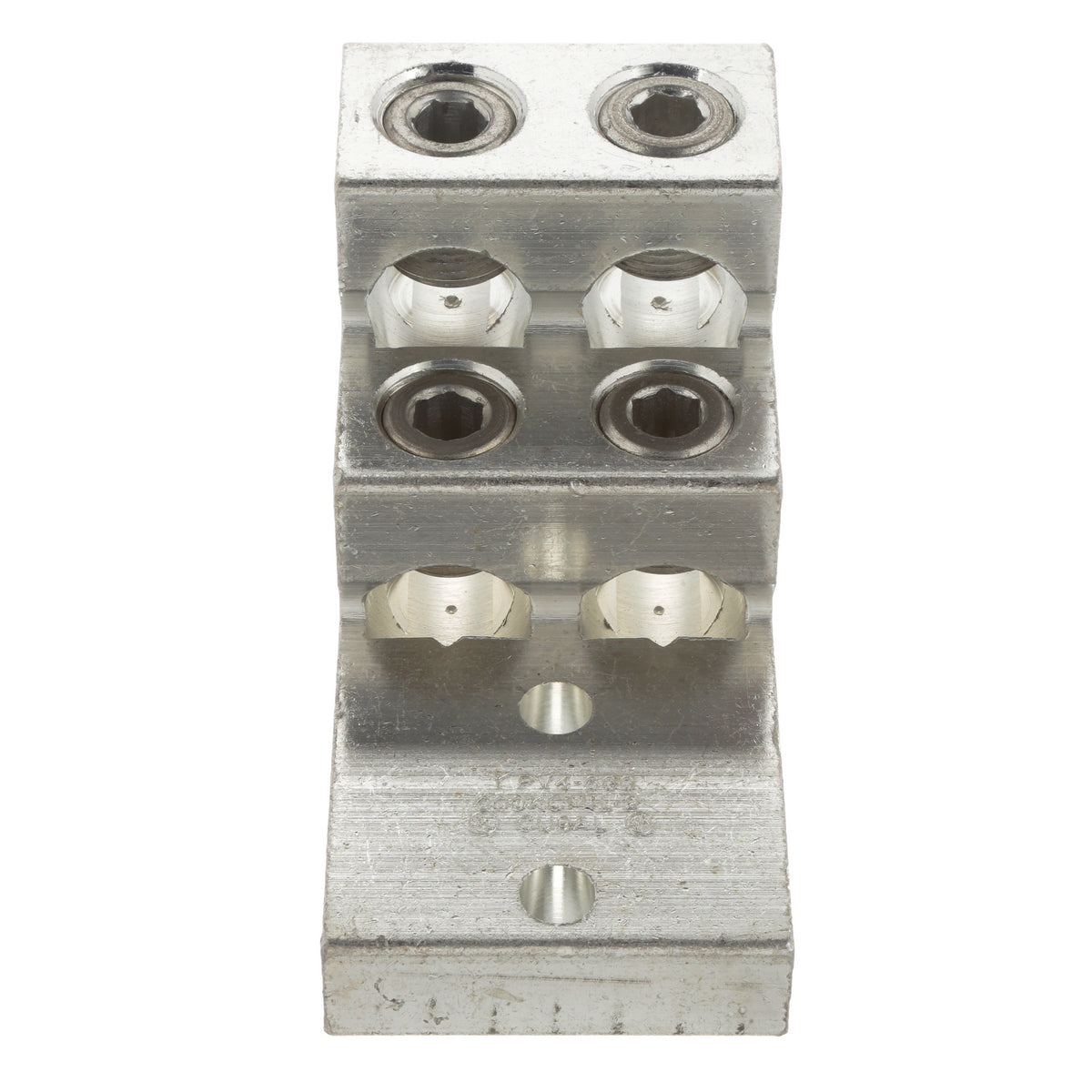

Two-hole, aluminum, vertical four barrel lug, type LAM4SB, #2 AWG - 600 kcmil, 3/8 (9.5mm) stud hole.
Panduit Mechanical Lug, 4-Barrel Vertical, Series: LAM4SB, Stranded Aluminum/Copper Conductor, 2 AWG to 600 kcmil Conductor, 3/8 in Stud, 2 Bolt Holes, 2.34 in L x 2.47 in W x 0.75 in THK Tongue, Straight Tongue, 600 VAC, Specifications: 3/8 in Hex, 1.38 in Stud Hole Spacing, 1.38 in L Wire Strip Top Hole, 2.57 in L Wire Strip Bottom Hole, 90 deg C, Aluminum, Tin Plated, 4.91 in L x 2.47 in W x 3 in H Dimensions
Panduit - LAM4SB600-38-1Y - Features
- Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Wide wire range taking capability minimizes inventory requirements
- Inspection window to visually assure full conductor insertion
- Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
- Four barrel provides termination of four conductors
- Tin plated to inhibit corrosion
- Vertical configuration saves space
- Four barrels provide termination of four conductors
- Vertical configuration saves space
- Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Tin-plated to inhibit corrosion
- Wide wire range-taking capability minimizes inventory requirements
- Inspection window to visually assure full conductor insertion
- Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
- UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90C
Specifications
Specifications
Panduit - LAM4SB600-38-1Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LAM4SB600-38-1Y |
| Barrel | Short |
| Bolt Hole | 3/8 Inch |
| Gauge | 600Kcmil - #2 |
| Holes | 2 Hole |
| Inspection Hole | No |
| Lug Material | Aluminum |
| Type | Mechanical |
| UNSPSC Code | 39121400 |
| Product Type | Mechanical Lug |
| Base Material | Aluminum |
| Number of Stud Holes | 4 |
| Barrel Type | Vertical 4-Barrel |
| Tongue Type | Straight Tongue |
| Tongue Angle | Straight |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1.38 |
| Stud Hole Spacing (mm) | 35.1 |
| Screw Type | Hex |
| Maximum Aluminum Conductor Size (kcmil) | 600 |
| Minimum Aluminum Conductor Size (AWG) | 2 |
| Maximum Copper Conductor Size (kcmil) | 600 |
| Minimum Copper Conductor Size (AWG STR) | 2 |
| Tongue Length (In.) | 2.34 |
| Tongue Length (mm) | 59.4 |
| Tongue Width (In.) | 2.47 |
| Tongue Width (mm) | 62.7 |
| Tongue Thickness (In.) | 0.75 |
| UPC | 07498359504 |
