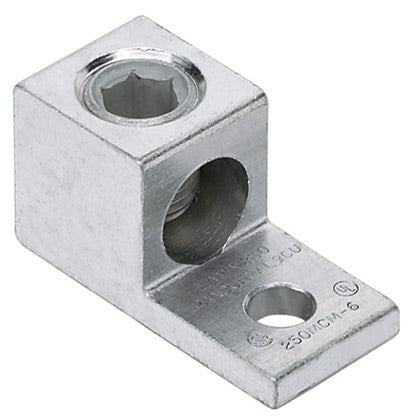

Panduit LAMA300-56-QY | Pan-Lug Aluminum Mechanical Connectors, One Hole, Single Barrel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LAMA300-56-QY | Pan-Lug Aluminum Mechanical Connectors, One...
Description
Description
Secure and reliable aluminum connections for various wire sizes with our mechanical lug, designed to accommodate a single wire, ideal for use in electrical applications.
Aluminum, single barrel, one-hole tongue connector, type LAMA.
Panduit Mechanical Lug, Single Barrel, Series: LAMA, Stranded Aluminum/Copper Conductor, 6 AWG to 300 kcmil Conductor, 5/16 in Stud, 1 Bolt Holes, 1 in L x 1 in W x 1/4 in THK Tongue, Straight Tongue, 600 VAC, Specifications: 5/16 in Hex, 1 in L Wire Strip, 90 deg C, Aluminum, Tin Plated, 2 in L x 1 in W x 1.13 in H Dimensions
Panduit - LAMA300-56-QY - Features
- Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Wide wire range taking capability minimizes inventory requirements
- Inspection window to visually assure full conductor insertion
- Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
- Tin plated to inhibit corrosion
- Compact design saves space
- Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Tin-plated to inhibit corrosion
- Compact design saves space
- Wide wire range-taking capability minimizes inventory requirements
- Inspection window to visually assure full conductor insertion
- Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
- UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90C
Specifications
Specifications
Panduit - LAMA300-56-QY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LAMA300-56-QY |
| Bolt Hole | 5/16 Inch |
| Gauge | 300Kcmil - #6 |
| Holes | 1 Hole |
| Inspection Hole | No |
| Lug Material | Aluminum |
| Type | Mechanical |
| UNSPSC Code | 39121400 |
| Product Type | Mechanical Lug |
| Base Material | Aluminum |
| Number of Stud Holes | 1 |
| Barrel Type | Single Barrel |
| Tongue Type | Straight Tongue |
| Tongue Angle | Straight |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 5/16 |
| Stud Hole Size (mm) | 7.9 |
| Screw Type | Hex |
| Maximum Aluminum Conductor Size (kcmil) | 300 |
| Minimum Aluminum Conductor Size (AWG) | 6 |
| Maximum Copper Conductor Size (kcmil) | 300 |
| Minimum Copper Conductor Size (AWG STR) | 6 |
| Tongue Length (In.) | 1 |
| Tongue Length (mm) | 25.4 |
| Tongue Width (In.) | 1 |
| Tongue Width (mm) | 22.9 |
| Tongue Thickness (In.) | 0.25 |
| Tongue Thickness (mm) | 5.6 |
| Overall Length (In.) | 2 |
| UPC | 07498359614 |
