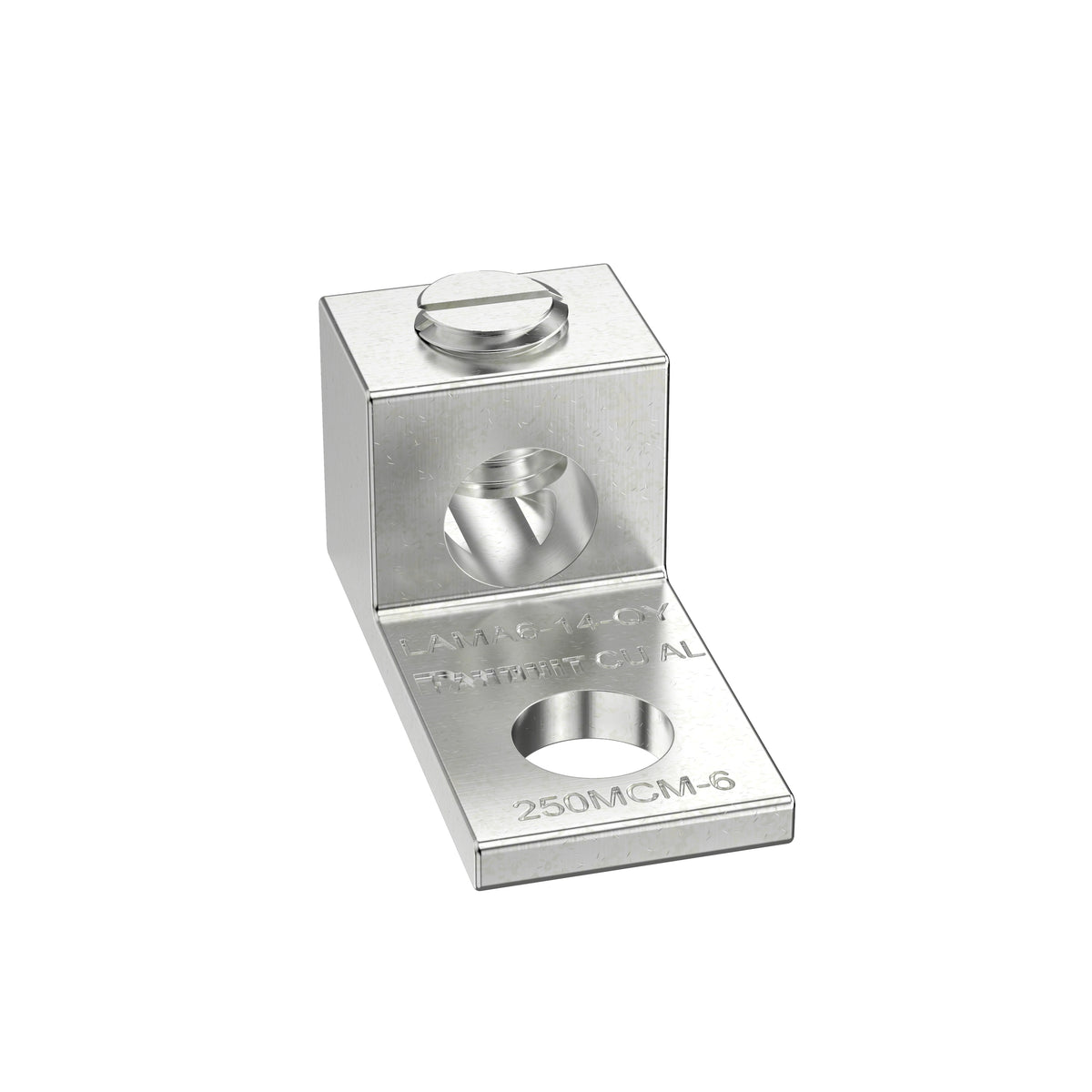

Panduit LAMA6-14-QY | Pan-Lug Mechanical Lug
Description
Description
Secure and reliable aluminum connections for various wire sizes with our mechanical lug, designed to accommodate a single wire, ideal for use in electrical applications.
Panduit Mechanical Lug, Single Barrel, Series: LAMA, Stranded Aluminum/Copper Conductor, 14 to 6 AWG Conductor, 1/4 in Stud, 1 Bolt Holes, 0.68 in L x 0.5 in W x 0.09 in THK Tongue, Straight Tongue, 600 VAC, Specifications: Slotted Head Screw, 1/4 in Stud Hole Spacing, 0.38 in L Wire Strip, 90 deg C, Aluminum, Tin Plated, 1.06 in L x 0.5 in W x 0.5 in H Dimensions
Panduit - LAMA6-14-QY - Features
- Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Wide wire range taking capability minimizes inventory requirements
- Inspection window to visually assure full conductor insertion
- Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
- Tin plated to inhibit corrosion
- Compact design saves space
Specifications
Specifications
Panduit - LAMA6-14-QY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LAMA6-14-QY |
| Product Type | Mechanical Lug |
| Base Material | Aluminum |
| Number of Stud Holes | 1 |
| Barrel Type | Single Barrel |
| Tongue Type | Straight Tongue |
| Tongue Angle | Straight |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Screw Type | Slotted |
| Maximum Aluminum Conductor Size (AWG) | 6 |
| Minimum Aluminum Conductor Size (AWG) | 14 |
| Maximum Copper Conductor Size (AWG STR) | 6 |
| Minimum Copper Conductor Size (AWG STR) | 14 |
| Tongue Length (In.) | 0.69 |
| Tongue Length (mm) | 17.5 |
| Tongue Width (In.) | 0.5 |
| Tongue Width (mm) | 12.7 |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.2 |
| Overall Length (In.) | 1.06 |
| UPC | 07498359619 |
Panduit - LAMA6-14-QY - Videos
| Panduit LAMA6-14-QY Video 1 | Click to View |
|---|
